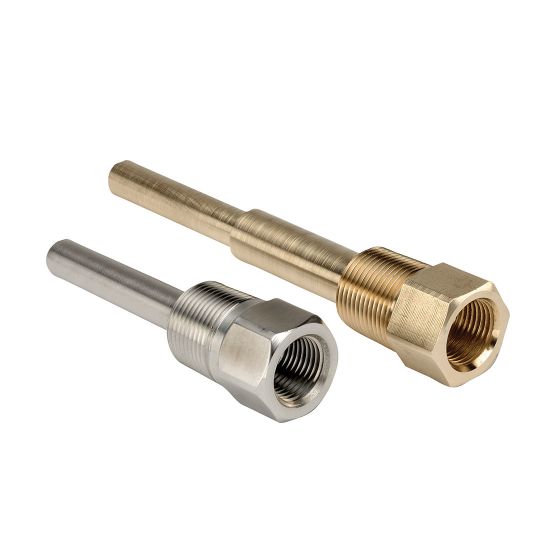

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

75-025-304-SS - Thermowells

Manufacturer: NOSHOK, Inc.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 75-025-304-SS

$73.58/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Note	Flange Connection not available.
Application	Recommended wherever the process being measured is under pressure, corrosive, abrasive, or moving at a high velocity HVAC Petrochemical Oil and gas Process (flanged thermowells)	Prop 65 Warnings	WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Additional Information	The Female thread will accept the 1/2" NPT Male thread without galling or seizing Brass, 304 Stainless Steel, or 316 Stainless Steel standard material options - other options available Standard style is stepped, available in straight, tapered and lagging options Multiple lagging lengths available	Limitations Which Apply Are	These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation. In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Warranty_yr	1	Process Connection Size	3/4
Bore Size_mm	6.35	Shank Diameter [Max]_in	0.75
Shank Diameter [Max]_mm	19.05	Instrument Connection Type	National Pipe Straight Mechanical (NPSM)
Insertion Diameter B [Max]_in	3/4	Insertion Diameter B [Max]_mm	19.05
Instrument Connection Size_in	1/2	Pressure Ratings at 70 Degree Fahrenheit (ºF)_psi	7,000
Style	Straight Shank	Material	304 Stainless Steel
Process Connection	3/4" NPT	Stem Lengths_in	2-1/2
Type	Thermowell	Process Connection Size_in	3/4
Process Connection Type	NPT
