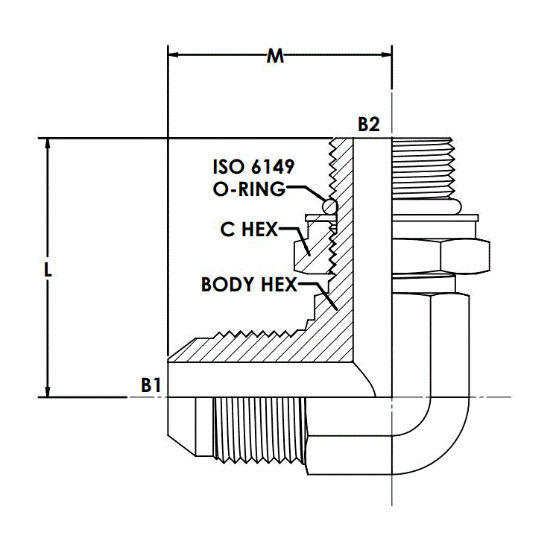

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

7650-06-16-NWO

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 7650-06-16-NWO

Products specifications

Attribute name	Attribute value
UOM	EA	Series	7650-NWO-FG-ISO 6149
Material	Steel	Thread Size 2	M16X1.5
Shape	90 Degree Angle	Centerline Length	36.4 MM
Type	Elbow	Centerline Length M	29.2 MM
Thread Type 2	Male Metric Adjustable ISO6149	Maximum Dynamic Pressure	6,000 psi
Thread Type	Male JIC SAE 37 Degree Flare	Plating	CR3
Thread Specification 2	ISO 6149 O-Ring Port	Thread Drill 2	9 MM
Hex C 1	22 MM	Thread Drill 1	7.54 MM
Hex Body	19 MM	Thread Size 1	9/16-18
Thread Specification 1	SAE J514	Raw Material Type	Steel Forging
O-Ring/Seal Material	NBR
