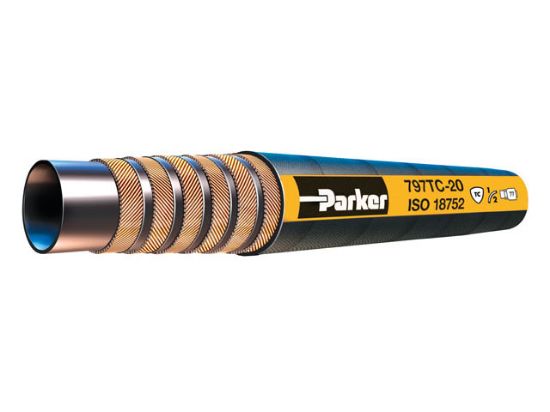

797-8-RL - 797 Series

Name: 797-8-RL - 797 Series
SKU: 797-8-RL
Price: 24.27 USD
Availability: InStock

High Constant Pressure 6000 PSI Hydraulic Hose

Availability:

169 in stock

Kansas City, KS

169

Partner Available:

580 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 797-8-RL

$24.27/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Inner Diameter	0.5 Inch
Material	Rubber	Mating Fitting Series	43
Working Pressure	6,000 psi (42 MPa)	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter	0.5 Inch	Inner Diameter Inch/mm	Inch
Material	Rubber	Application	Hydraulic
Working Pressure Range	> 5000 PSI (345 bar)	Hose Category	Hydraulic Industry Standard
Operating Temperature	-40°F to +212°F (-40°C to +100°C)	Trade Name	GlobalCore
Mating End Fitting Series	43	Specification	ISO 18752
ISO 18752 Performance	BC	Minimum Bend Radius	4 Inch
Hose Pressure Range	High	Series	797
Distinct Properties	Constant Pressure 6000 PSI	Working Pressure	6,000 psi (42 MPa)

Product resources
