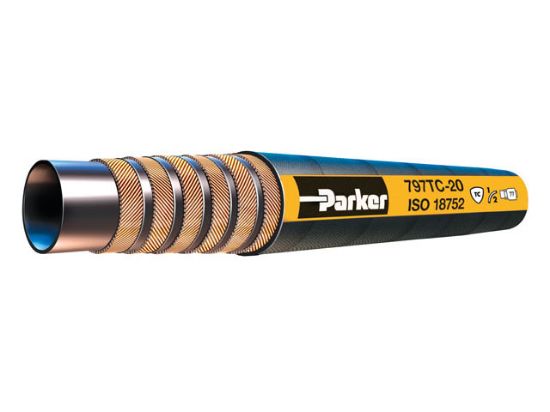

797TC-4-RL - 797TC Series

Name: 797TC-4-RL - 797TC Series
SKU: 797TC-4-RL
Price: 6.16 USD
Availability: InStock

High Tough Cover Constant Pressure 6000 PSI Hydraulic Hose

Availability:

1309 in stock

Olivette, MO	709
Springfield, MO	339
Wichita, KS	178
COLUMBIA, MO	45
Joplin, MO	35

Partner Available:

29915 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 797TC-4-RL

$6.16/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Mating Fitting Series	43
Inner Diameter	0.25 Inch	Material	Rubber
Working Pressure	6,000 psi (42 MPa)	Hose Category	Hydraulic Industry Standard
Minimum Bend Radius	2 Inch	Series	797TC
Material	Rubber	Trade Name	GlobalCore
Inch/Metric	Inch	Parker Division	Hose Products
Working Pressure Range	> 5000 PSI (345 bar)	Distinct Properties	Tough Cover Constant Pressure 6000 PSI
Specification	ISO 18752	Application	Hydraulic
Working Pressure	6,000 psi (42 MPa)	Inner Diameter Inch/mm	Inch
ISO 18752 Performance	AC	Parker Group	Fluid Connector
Mating End Fitting Series	43	Hose Pressure Range	High
Operating Temperature	-40°F to +212°F (-40°C to +100°C)	Inner Diameter	0.25 Inch
