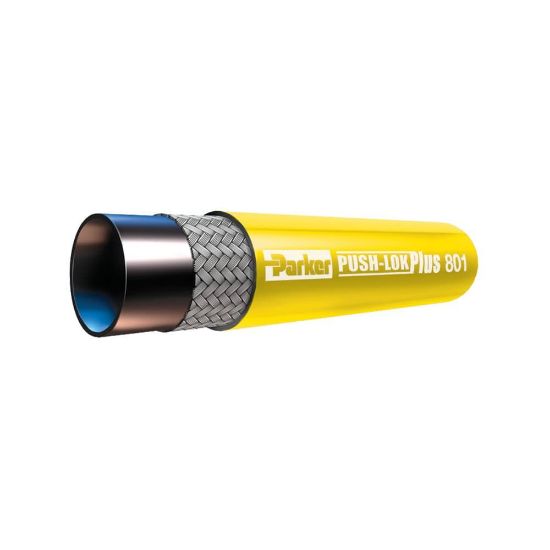

Picture of 801-10-YEL-RL

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

801-10-YEL-RL

Parker 801-10-YEL-RL | Push-Lok and Push-on hoses | Series Push-Lok | Style Push-Lok Plus | Hose Dash Size -10 | Hose ID 15.9 MM | Hose OD 0.909 Inch; 23.1 MM
Availability:
42 in stock
Wichita, KS42
Partner Available:226 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 801-10-YEL-RL
$5.67/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Parker's Low Pressure Push-Lok®- the self-grip hose system for low-pressure applications. Parker's Push-Lok hose line features the widest fluid compatibility, application and size range in the industry. The Push-Lok system is easy to use. No clamps or special tools are required during installation. Moreover, with Parker's exclusive color-code system, you can inventory, maintain and identify your hose needs easily and efficiently. The industry's most complete line of low-pressure hoses and fittings, Push-Lok offers the range and versatility to meet all your instrumentation needs. Hose 801PLUS with improved Nitrile (NBR) inner tube and extended chemical resistance/improved oil compatibility provides quick and easy assembly/disassembly. 801PLUS is available in six different colors with advantages in applications where a number of hose lines carry different media, Push-Lok colors reduce timely “tracing” of lines, preventing disconnection of wrong line and unnecessary downtime. 801PLUS is ideal for a variety of low-pressure applications in all markets and compatible with Push-Lok fittings in steel, stainless steel and brass in connections such as DIN, BSP, SAE, JIC and ORFS. The outstanding properties of Push-Lok are:

  • Easy assembly and organisation with Parker's exclusive color-code system.
  • Using color-coded Push-Lok hoses is an excellent way to:
  • Enhance product appearance
  • Improve inventory control
  • Identify industrial drop lines
  • Easy control of maintenance intervals
  • Simple stock planning in different departments
  • Push-Lok assemblies can be made in seconds, saving valuable time and cost.
  • The unique seal of Push-Lok ensures reliable, durable, leak-free service.
  • High functional safety with a design factor of 4
  • Wide range of hose and fittings for a wide range of applications.

    • Features:

  • Matched hose and fitting system guarantees an approved and safe combination and the highest quality and safety, combined with the longest service life of the final product to the end-users.
  • The high performance synthetic rubber hose cover is available in different colors. 801PLUS is very flexible and therefore ideal for a variety of applications where high flexibility is required.
  • 801PLUS has the fullest range of color-coding to benefit your operations.
  • The Parker low pressure Push-Lok hose range is compatible with Push-Lok fittings in steel, stainless steel and brass.

    Applications:

  • All markets with low-pressure applications
  • Paper and pulp: Water/Air-Applications The Parker Push-Lok® self-grip system for low-pressure applications is compatible with Push-Lok® fittings in series 82.

    • Markets:

    Industrial
    Products specifications
    Attribute nameAttribute value
    UOMFTHose Inside Diameter15.9 MM
    Hose Reinforcement MaterialHigh Tensile Fibre BraidMax. Operating Pressure2.1 mpa 21 Bar 300 psi
    Hose Outside Diameter0.909 Inch 23.1 MMVacuum Pressure Rating15.06 Inch-HG 0.51 Bar 382.53 MM-HG
    Hose Inner Tube MaterialNitrile NBRStandardParker specifications
    TechnologyFluid & Gas HandlingSeriesPush-Lok
    Hose Dash Size-10MediaAir Water Water-glycol-emulsions And Mineral Based Hydraulic And Lubricating Oils
    Min. Bend Radius5.906 Inch 150 MMMax. Operating Temperature100 (Water: 85 Air: 70) °C 212 (Water: 185 Air: 158) °F
    Compatible Fitting82 SeriesMin. Operating Temperature-40 °C
    Cover ColorYellowWeight0.19 LB
    Cover MaterialHigh Performance Synthetic Rubber In Different ColoursStylePush-Lok Plus
    Parker DivisionHose ProductsParker GroupFluid Connector
    Design Factor4:1
