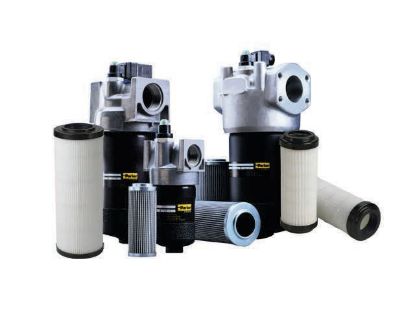

80CN Series Medium Pressure Filter
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
80CN Series Hydraulic and Lube Oil Medium Pressure Filter
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Pkg Qty | Operating Temperature | Element Length | Seals | Nominal Filter Rating | Indicator Type | Bypass | Max Pressure - Non-Fatigue MAOP | Options | Max Pressure - Fatigue MAOP | Port | Nominal Flow Rating | Replacement Element | Parker Group | Parker Division | Operating Temperature | Element Length | Port Type | Seals | Filter Type | Filter Media Type | Filter Media Code | Nominal Filter Micron Rating | Indicator Type | Bypass | Max Pressure - Non-Fatigue MAOP | Options | Max Pressure - Fatigue MAOP | Port | Nominal Flow Rating | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80CN105QEBE2KN2421 | Backordered | Backordered | $1,018.86/each | EA | EA | 1 | -40F to 225F (-40C to 107C) | Single | Nitrile | 5 micron | Electrical/Visual (DIN-43650 Connection) | 50 PSI (3.5 bar) | 1000 psi (69 bar) | No bypass and drain port | 800 psi (55.2 bar) | 1 1/2 NPT | 45 GPM (171 LPM) | 936714Q | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | NPT | Nitrile | Medium Pressure Filter | Ecoglass III | 05QE | 5 micron | Electrical/Visual (DIN-43650 Connection) | 50 PSI (3.5 bar) | 1000 PSI (69 bar) | No bypass and drain port | 800 PSI (55.2 bar) | 1 1/2 NPT | 45 GPM (171 LPM) | 80CN | |
| 80CN110QEBM2GY3221 | Backordered | Backordered | POR | EA | EA | 1 | -40F to 225F (-40C to 107C) | Single | Nitrile | 10 micron | Visual - Automatic Reset | 25 PSI (1.7 bar) | 1000 psi (69 bar) | No bypass and drain port | 800 psi (55.2 bar) | 2 Flange face - SAE Code 61 | 45 GPM (171 LPM) | 936602Q | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | Flange face - SAE Code 61 | Nitrile | Medium Pressure Filter | Ecoglass III | 10QE | 10 micron | Visual - Automatic Reset | 25 PSI (1.7 bar) | 1000 PSI (69 bar) | No bypass and drain port | 800 PSI (55.2 bar) | 2 Flange face - SAE Code 61 | 45 GPM (171 LPM) | 80CN | |
| 80CN110QEBM2KN2421 | Backordered | Backordered | POR | EA | EA | 1 | -40F to 225F (-40C to 107C) | Single | Nitrile | 10 micron | Visual - Automatic Reset | 50 PSI (3.5 bar) | 1000 psi (69 bar) | No bypass and drain port | 800 psi (55.2 bar) | 1 1/2 NPT | 45 GPM (171 LPM) | 936602Q | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | NPT | Nitrile | Medium Pressure Filter | Ecoglass III | 10QE | 10 micron | Visual - Automatic Reset | 50 PSI (3.5 bar) | 1000 PSI (69 bar) | No bypass and drain port | 800 PSI (55.2 bar) | 1 1/2 NPT | 45 GPM (171 LPM) | 80CN | |
| 80CN110QEBM2KS324 | Backordered | Backordered | $916.65/each | EA | EA | 1 | -40F to 225F (-40C to 107C) | Single | Nitrile | 10 micron | Visual - Automatic Reset | 50 PSI (3.5 bar) | 1000 psi (69 bar) | SAE-4 drain port on bowl | 800 psi (55.2 bar) | 32 SAE | 45 GPM (171 LPM) | 936602Q | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | SAE | Nitrile | Medium Pressure Filter | Ecoglass III | 10QE | 10 micron | Visual - Automatic Reset | 50 PSI (3.5 bar) | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 32 SAE | 45 GPM (171 LPM) | 80CN | |
| 80CN110QEBPGN244 | Backordered | Backordered | $840.57/each | EA | EA | 1 | -40F to 225F (-40C to 107C) | Single | Nitrile | 10 micron | Plugged Indicator | 25 PSI (1.7 bar) | 1000 psi (69 bar) | SAE-4 drain port on bowl | 800 psi (55.2 bar) | 1 1/2 NPT | 45 GPM (171 LPM) | 936602Q | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | NPT | Nitrile | Medium Pressure Filter | Ecoglass III | 10QE | 10 micron | Plugged Indicator | 25 PSI (1.7 bar) | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 1 1/2 NPT | 45 GPM (171 LPM) | 80CN | |
| 80CN110QEBPKY324 | Backordered | Backordered | POR | EA | EA | 1 | -40F to 225F (-40C to 107C) | Single | Nitrile | 10 micron | Plugged Indicator | 50 PSI (3.5 bar) | 1000 psi (69 bar) | SAE-4 drain port on bowl | 800 psi (55.2 bar) | 2 Flange face - SAE Code 61 | 45 GPM (171 LPM) | 936602Q | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Single | Flange face - SAE Code 61 | Nitrile | Medium Pressure Filter | Ecoglass III | 10QE | 10 micron | Plugged Indicator | 50 PSI (3.5 bar) | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 2 Flange face - SAE Code 61 | 45 GPM (171 LPM) | 80CN | |
| 80CN110QEVPKS244 | Backordered | Backordered | $904.70/each | EA | EA | 1 | -15F to 250F (-26C to 121C) | Single | Fluorocarbon | 10 micron | Plugged Indicator | 50 PSI (3.5 bar) | 1000 psi (69 bar) | SAE-4 drain port on bowl | 800 psi (55.2 bar) | 24 SAE | 45 GPM (171 LPM) | 936602Q | Filtration | Hydraulic Filter | -15F to 250F (-26C to 121C) | Single | SAE | Fluorocarbon | Medium Pressure Filter | Ecoglass III | 10QE | 10 micron | Plugged Indicator | 50 PSI (3.5 bar) | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 24 SAE | 45 GPM (171 LPM) | 80CN | |
| 80CN205QEBE2KY3221 | Backordered | Backordered | POR | EA | EA | 1 | -40F to 225F (-40C to 107C) | Double | Nitrile | 5 micron | Electrical/Visual (DIN-43650 Connection) | 50 PSI (3.5 bar) | 1000 psi (69 bar) | No bypass and drain port | 800 psi (55.2 bar) | 2 Flange face - SAE Code 61 | 70 GPM (265 LPM) | 936717Q | Filtration | Hydraulic Filter | -40F to 225F (-40C to 107C) | Double | Flange face - SAE Code 61 | Nitrile | Medium Pressure Filter | Ecoglass III | 05QE | 5 micron | Electrical/Visual (DIN-43650 Connection) | 50 PSI (3.5 bar) | 1000 PSI (69 bar) | No bypass and drain port | 800 PSI (55.2 bar) | 2 Flange face - SAE Code 61 | 70 GPM (265 LPM) | 80CN | |
| 80CN210QEVM2GN244 | Backordered | Backordered | POR | EA | EA | 1 | -15F to 250F (-26C to 121C) | Double | Fluorocarbon | 10 micron | Visual - Automatic Reset | 25 PSI (1.7 bar) | 1000 psi (69 bar) | SAE-4 drain port on bowl | 800 psi (55.2 bar) | 1 1/2 NPT | 70 GPM (265 LPM) | 936718Q | Filtration | Hydraulic Filter | -15F to 250F (-26C to 121C) | Double | NPT | Fluorocarbon | Medium Pressure Filter | Ecoglass III | 10QE | 10 micron | Visual - Automatic Reset | 25 PSI (1.7 bar) | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 1 1/2 NPT | 70 GPM (265 LPM) | 80CN | |
| 80CN220QEVM2KS324 | Backordered | Backordered | POR | EA | EA | 1 | -15F to 250F (-26C to 121C) | Double | Fluorocarbon | 20 micron | Visual - Automatic Reset | 50 PSI (3.5 bar) | 1000 psi (69 bar) | SAE-4 drain port on bowl | 800 psi (55.2 bar) | 32 SAE | 70 GPM (265 LPM) | 936719Q | Filtration | Hydraulic Filter | -15F to 250F (-26C to 121C) | Double | SAE | Fluorocarbon | Medium Pressure Filter | Ecoglass III | 20QE | 20 micron | Visual - Automatic Reset | 50 PSI (3.5 bar) | 1000 PSI (69 bar) | SAE-4 drain port on bowl | 800 PSI (55.2 bar) | 32 SAE | 70 GPM (265 LPM) | 80CN | |
| 936764 | Backordered | 8 in stock | $560.38/each | EA | Filtration | Hydraulic Filter |
