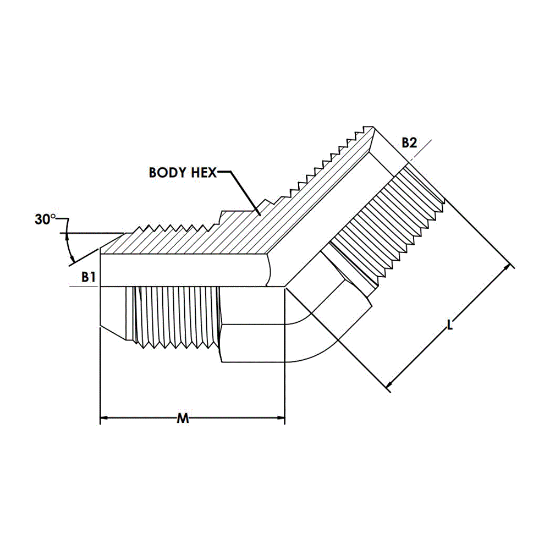

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

8180-16-16-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 8180-16-16-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Centerline Length M	32.3 MM
Series	8180-FG	Material	Steel
Thread Size 2	1-11	Centerline Length	35.4 MM
Shape	45 Degree Angle	Type	Elbow
Hex Body	33 MM	Maximum Dynamic Pressure	3,000 psi
Raw Material Type	Steel Forging	Thread Drill 2	22.0 MM
Thread Specification 2	ISO 7-1	Thread Drill 1	22 MM
Plating	CR3	Thread Specification 1	JIS B 0202
Thread Type	Male JIS 30 Degree Flare	Thread Size 1	1-11
Thread Type 2	Male BSPT (R)
