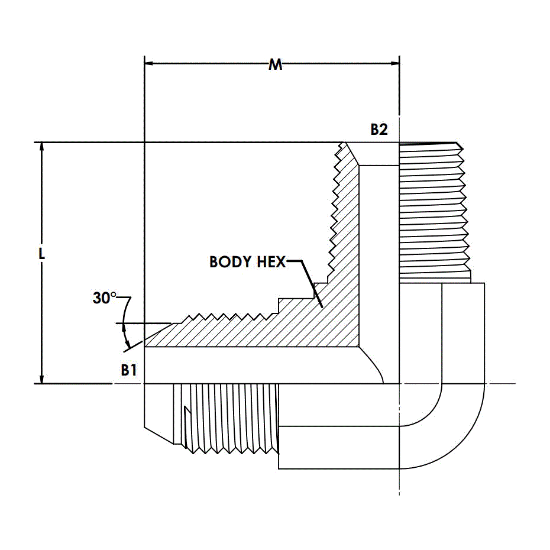

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

8280-04-04-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 8280-04-04-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Centerline Length	25.5 MM
Shape	90 Degree Angle	Type	Elbow
Centerline Length M	29 MM	Series	8280-FG
Material	Steel	Thread Size 2	1/4-19
Thread Drill 1	6 MM	Thread Type	Male JIS 30 Degree Flare
Thread Type 2	Male BSPT (R)	Maximum Dynamic Pressure	5,000 psi
Thread Size 1	1/4-19	Raw Material Type	Steel Forging
Hex Body	14 MM	Thread Specification 2	ISO 7-1
Thread Drill 2	6 MM	Plating	CR3
Thread Specification 1	JIS B 0202
