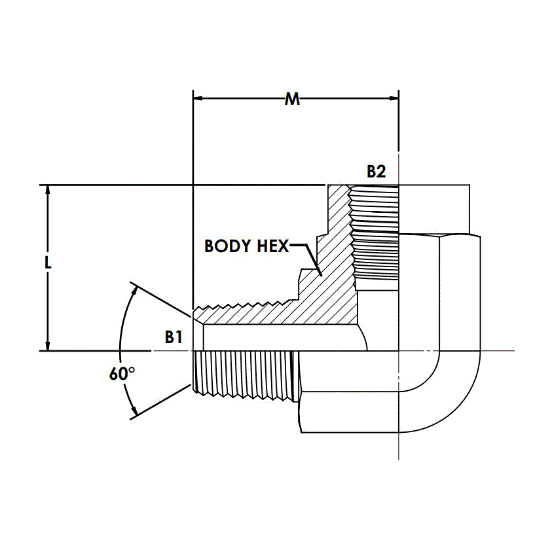

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

9002-04-04-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9002-04-04-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Series	9002-FG
Thread Size 2	1/4-19	Shape	90 Degree Angle
Centerline Length	22.35 MM	Type	Elbow
Centerline Length M	27.69 MM	Material	Steel
Thread Specification 1	ISO 7-1	Thread Type 2	Female BSPT (R)
Plating	CR3	Thread Drill 1	7.14 MM
Thread Type	Male BSPT (R)	Raw Material Type	Steel Forging
Thread Size 1	1/4-19	Hex Body	19.05 MM
Maximum Dynamic Pressure	6,000 psi	Thread Specification 2	ISO 7-1
