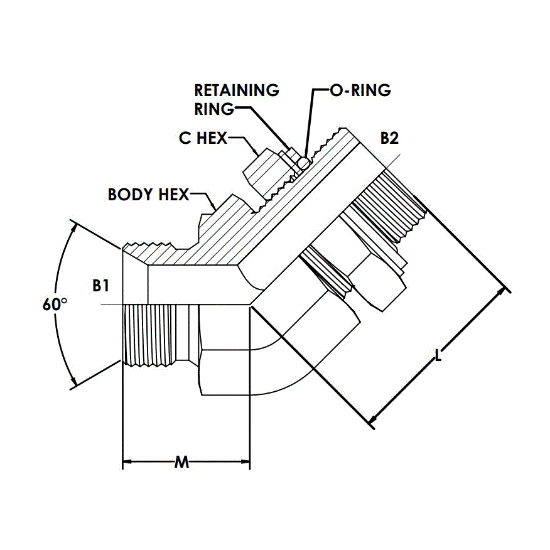

9122-06-06-NWO

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9122-06-06-NWO

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Series	9122-NWO-FG-ORR	Thread Size 2	3/8-19
Centerline Length	29.5 MM	Shape	45 Degree Angle
Type	Elbow	Centerline Length M	24.05 MM
Thread Size 1	3/8-19	Hex Body	22 MM
Thread Type	Male BSPP with 60 Degree Seat	Thread Drill 1	7.9 MM
Plating	CR3	Thread Specification 2	O-Ring and Retaining Ring; for ISO 1179 Port; ISO 8434-6; BS 5200
Maximum Dynamic Pressure	5,000 psi	Hex C 1	22 MM
Thread Drill 2	9.9 MM	Thread Specification 1	60 DEG Seat Swivel Connection
Raw Material Type	Steel Forging	Thread Type 2	Male BSPP Adjustable ORR
O-Ring/Seal Material	NBR
