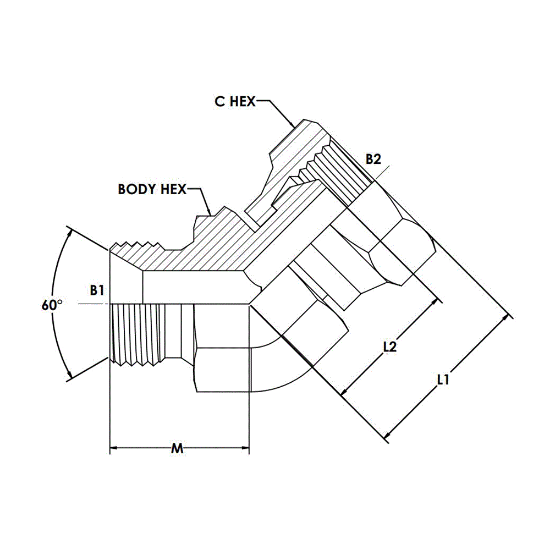

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

9124-08-08-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9124-08-08-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Thread Size 2	1/2-14	Series	9124-FG
Shape	45 Degree Angle	Type	Elbow
Centerline Length M	23.57 MM	Hex C 1	27 MM
Maximum Dynamic Pressure	2,900 psi	Thread Size 1	1/2-14
Centerline Length L2	22.65 MM	Hex Body	25.4 MM
Thread Specification 2	60 Degree Seat Swivel Connection	Thread Type 3	ISO 1179, ISO 8434-6, BS 5200
Plating	CR3	Thread Drill 2	9.7 MM
Centerline Length L1	27.85 MM	Thread Type	Male BSPP with Degree Seat
Thread Drill 1	11.1 MM	Thread Type 2	Female BSPP Swivel
Thread Specification 1	60 DEG Seat Swivel Connection	Raw Material Type	Steel Forging
