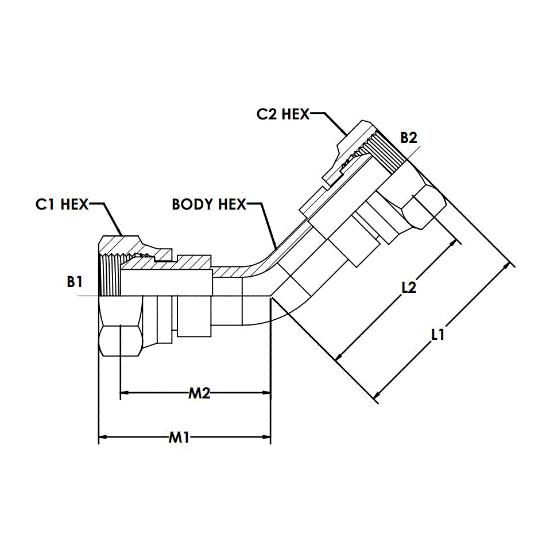

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

9144-24-24

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9144-24-24

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Series	9144	Thread Size 2	1-1/2-11
Shape	45 Degree Angle	Type	Elbow
Plating	CR3	Thread Specification 2	60 Degree Seat Swivel Connection; ISO 1179; ISO 8434-6; BS 5200
Raw Material Type	Bent Tube	Thread Type 2	Female BSPP Swivel
Maximum Dynamic Pressure	1,500 psi	Thread Type	Female BSPP Swivel
Thread Specification 1	60 DEG Seat Swivel Connection	Thread Size 1	1-1/2-11
