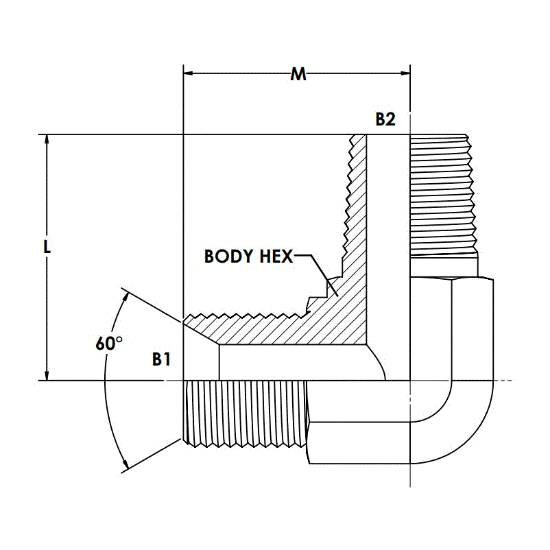

9220-12-12-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9220-12-12-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Series	9220-FG	Thread Size 2	3/4-14
Shape	90 Degree Angle	Centerline Length	41 MM
Type	Elbow	Centerline Length M	39.5 MM
Maximum Dynamic Pressure	2,900 psi	Thread Specification 2	ISO 7-1
Thread Type	Male BSPP with 60 Degree Seat	Plating	CR3
Thread Drill 1	16.8 MM	Hex Body	27 MM
Thread Size 1	3/4-14	Thread Type 2	Male BSPT (R)
Thread Drill 2	18.26 MM	Thread Specification 1	60 DEG Seat Swivel Connection
Raw Material Type	Steel Forging
