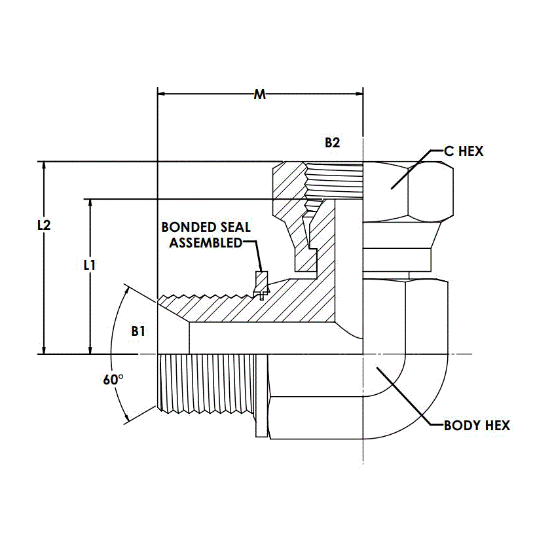

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

9224-02-02-FG-BS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9224-02-02-FG-BS

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Elbow	Shape	90 Degree Angle
Series	9224-FG-BS	Thread Size 2	1/8-28
Centerline Length M	21 MM	Assembled BSPP Bonded Seal	9900-02
Plating	CR3	Centerline Length L2	22 MM
Thread Specification 2	ISO 1179, ISO 8434-6, BS 5200	Hex C 1	14 MM
Thread Drill 1	3.5 MM	Thread Type 2	Female BSPP Swivel
Maximum Dynamic Pressure	5,100 psi	Hex Body	11 MM
Centerline Length L1	26.5 MM	Raw Material Type	Steel Forging
Thread Size 1	1/8-28	O-Ring/Seal Material	NBR
Thread Specification 1	60 DEG Seat Swivel Connection; Assembled BSPP Bonded Seal; for ISO 1179 Port	Thread Drill 2	3.5 MM
Thread Type	Male BSPP with 60 Degree Seat
