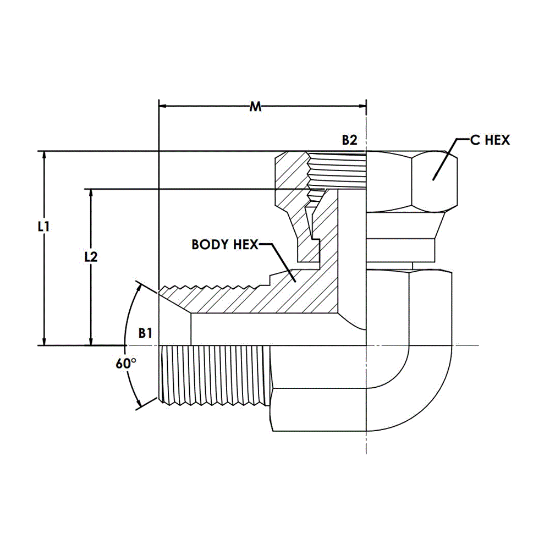

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

9224-06-08-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9224-06-08-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Elbow	Shape	90 Degree Angle
Series	9224-FG	Thread Size 2	1/2-14
Centerline Length M	31.5 MM	Thread Specification 1	60 DEG Seat Swivel Connection
Raw Material Type	Steel Forging	Hex C 1	27 MM
Centerline Length L2	26.8 MM	Maximum Dynamic Pressure	2,900 psi
Hex Body	22 MM	Thread Size 1	3/8-19
Thread Type	Male BSPP with 60 Degree Seat	Centerline Length L1	32 MM
Thread Drill 1	7.9 MM	Thread Specification 2	ISO 1179, ISO 8434-6, BS 5200
Plating	CR3	Thread Drill 2	9.7 MM
Thread Type 2	Female BSPP Swivel
