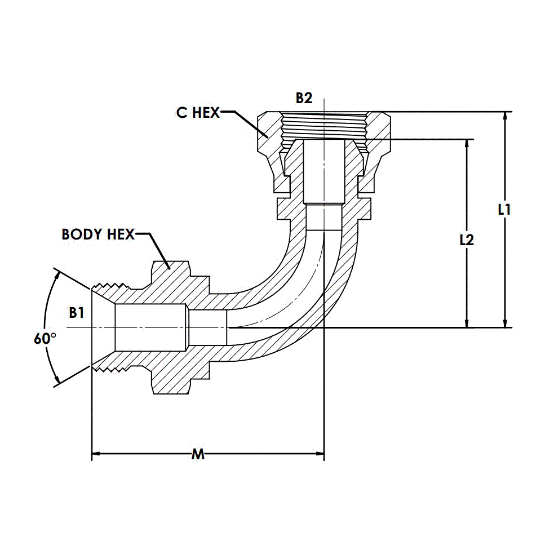

9224-L-04-04

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9224-L-04-04

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Elbow	Shape	90 Degree Angle
Series	9224-L	Thread Size 2	1/4-19
Thread Specification 2	ISO 1179, ISO 8434-6, BS 5200	Plating	CR3
Raw Material Type	Bent Tube	Thread Type 2	Female BSPP Swivel
Maximum Dynamic Pressure	5,100 psi	Thread Specification 1	60 DEG Seat Swivel Connection
Thread Size 1	1/4-19	Thread Type	Male BSPP with 60 Degree Seat
