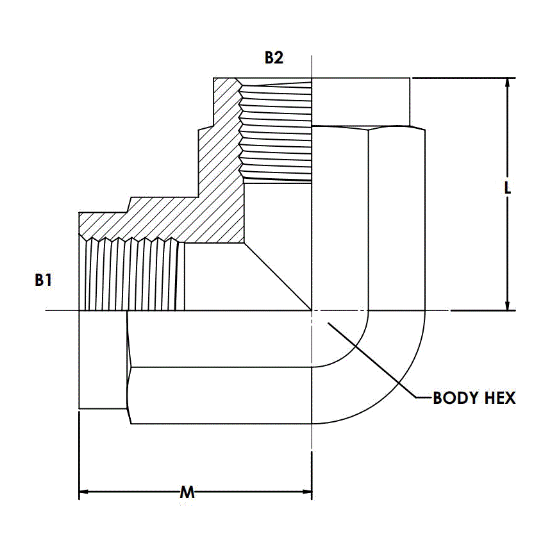

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

9233-06-06-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9233-06-06-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Elbow
Centerline Length M	26.5 MM	Material	Stainless Steel
Series	9233-FG	Thread Size 2	3/8-19
Shape	90 Degree Angle	Centerline Length	26.5 MM
Maximum Dynamic Pressure	5,800 psi	Hex Body	22.22 MM
Thread Type	Female BSPP (G)	Thread Specification 1	ISO 1179, ISO 8434-6, BS 5200
Thread Type 2	Female BSPP (G)	Raw Material Type	Stainless Steel Forging
Thread Size 1	3/8-19	Thread Specification 2	ISO 1179, ISO 8434-6, BS 5200
