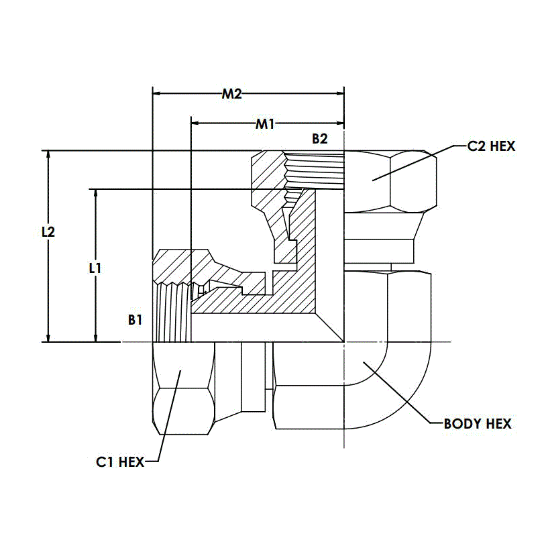

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

9244-08-08-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9244-08-08-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	90 Degree Angle
Centerline Length	31 MM	Centerline Length M1	25.8 MM
Type	Elbow	Material	Stainless Steel
Series	9244-FG	Thread Size 2	1/2-14
Hex C 2	27 MM	Thread Drill 2	9.7 MM
Thread Specification 1	ISO 1179, ISO 8434-6, BS 5200	Centerline Length L1	25.8 MM
Thread Type 2	Female BSPP Swivel	Thread Drill 1	9.7 MM
Thread Type	Female BSPP Swivel	Hex C 1	27 MM
Maximum Dynamic Pressure	2,900 psi	Thread Size 1	1/2-14
Hex Body	25.4 MM	Raw Material Type	Stainless Steel Forging
Centerline Length M2	31 MM	Thread Specification 2	ISO 1179, ISO 8434-6, BS 5200
