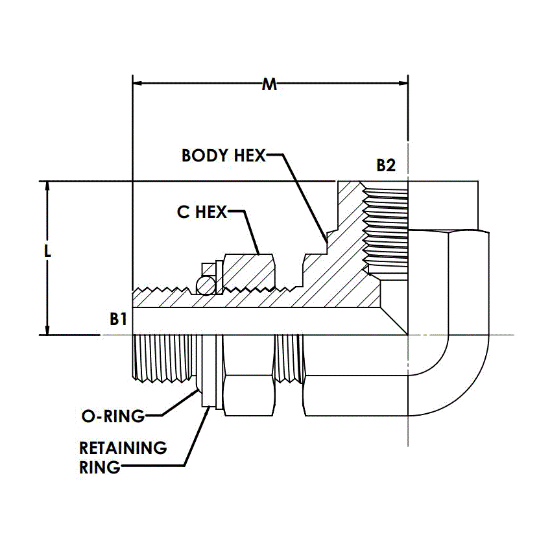

9263-04-04-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	14 in stock

SKU 9263-04-04-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Elbow
Centerline Length M	37.34 MM	Material	Steel
Series	9263-NWO-FG-ORR	Thread Size 2	1/4-19
Shape	90 Degree Angle	Centerline Length	20.83 MM
Thread Size 1	1/4-19	Raw Material Type	Steel Forging
O-Ring/Seal Material	NBR	Thread Drill 1	7.5 MM
Thread Type 2	Female BSPP (G)	Thread Specification 2	ISO 1179, ISO 8434-6, BS 5200
Thread Specification 1	O-Ring and Retaining Ring; for ISO 1179 Port; ISO 8434-6; BS 5200	Hex Body	19.05 MM
Plating	CR3	Hex C 1	19 MM
Maximum Dynamic Pressure	5,000 psi	Thread Type	Male BSPP Adjustable ORR
