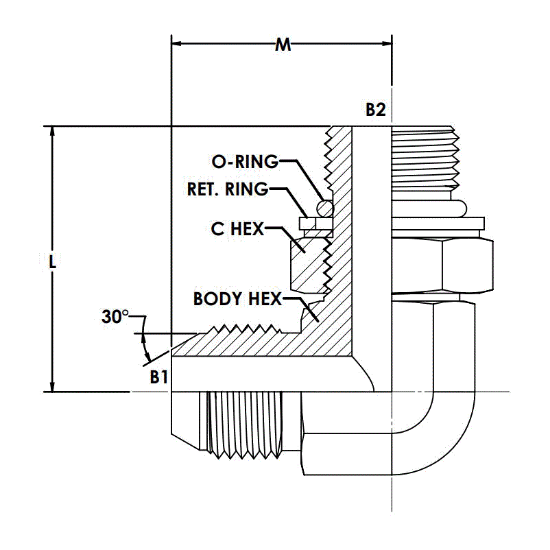

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

9282-06-06-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9282-06-06-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Series	9282-NWO-FG-ORR
Material	Steel	Thread Size 2	3/8-19
Shape	90 Degree Angle	Centerline Length	36.8 MM
Type	Elbow	Centerline Length M	29 MM
Thread Size 1	3/8-19	Maximum Dynamic Pressure	3,600 psi
Thread Drill 2	9.5 MM	Thread Type	Male JIS 30 Degree Flare
Thread Specification 1	JIS B 0202	Plating	CR3
Thread Specification 2	O-Ring and Retaining Ring; for ISO 1179 Port; ISO 8434-6; BS 5200	Hex C 1	22 MM
Hex Body	19 MM	Thread Type 2	Male BSPP Adjustable ORR
Raw Material Type	Steel Forging	O-Ring/Seal Material	NBR
