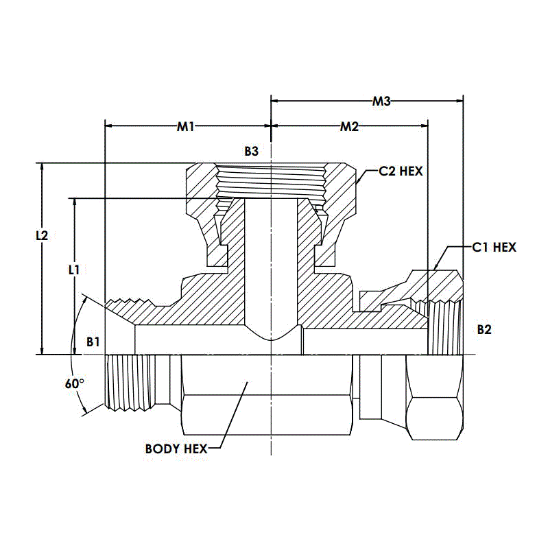

9324-06-06-06-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9324-06-06-06-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Type	Tee	Connection Type	MBSPP-FBSPPS-FBSPPS
Weight	0.175 LB	Series	9324-FG
Style	Tee Adapter	Hex Size 1	22 MM
Thread Size 2	3/8-19	Standard	Prop-65 Warning
Max. Dynamic Pressure	5100 psi	Thread Specification 4	ISO 1179; ISO 8434-6; BS 5200
Thread Size 1	3/8-19	Thread Type 3	Female BSPP Swivel
Thread Drill 2	7.1 MM	Hex Size 2	22 MM
Plating	CR3	Thread Drill 1	7.9 MM
Thread Specification 2	60 Deg Seat Swivel Connection	Thread Type 2	Female BSPP Swivel
Thread Drill 3	7.1 MM	Thread Type 1	Male BSPP With 60 Degree Seat
Body Hex	22 MM	Raw Material Type	Steel Forging
Thread Specification 3	60 Deg Seat Swivel Connection	Thread Size 3	3/8-19
Thread Specification 1	60 DEG Seat Swivel Connection
