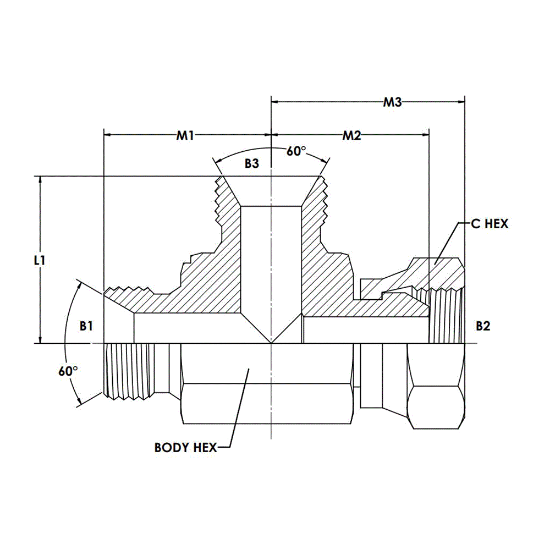

9326-08-08-08-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9326-08-08-08-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Stainless Steel
Type	Tee	Connection Type	MBSPP-FBSPPS-MBSPP
Series	9326-FG	Style	Tee Adapter
Hex Size 1	27 MM	Thread Size 2	1/2-14
Standard	Prop-65 Warning	Max. Dynamic Pressure	2900 psi
Thread Specification 4	ISO 1179; ISO 8434-6; BS 5200	Body Hex	25.4 MM
Thread Type 1	Male BSPP With 60 Degree Seat	Thread Drill 1	11.1 MM
Thread Type 2	Female BSPP Swivel	Thread Drill 3	11.1 MM
Thread Specification 3	60 Deg Seat Swivel Connection	Thread Specification 1	60 DEG Seat Swivel Connection
Raw Material Type	Stainless Steel Forging	Thread Size 1	1/2-14
Thread Type 3	Male BSPP With 60 Degree Seat	Thread Size 3	1/2-14
Thread Drill 2	9.7 MM	Thread Specification 2	60 Deg Seat Swivel Connection
