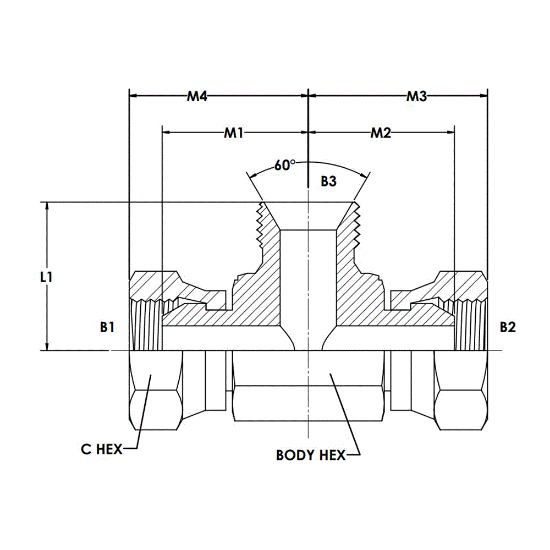

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

9328-06-06-06-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9328-06-06-06-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Tee
Thread Specification 4	ISO 1179; ISO 8434-6; BS 5200	Max. Dynamic Pressure	5100 psi
Hex Size 1	22 MM	Standard	Prop-65 Warning
Series	9328-FG	Material	Steel
Connection Type	FBSPPS-FBSPPS-MBSPP	Style	Tee Adapter
Thread Size 2	3/8-19	Thread Drill 3	7.90 MM
Thread Specification 2	60 Deg Seat Swivel Connection	Thread Type 2	Female BSPP Swivel
Thread Size 3	3/8-19	Body Hex	22 MM
Thread Specification 1	60 DEG Seat Swivel Connection	Raw Material Type	Steel Forging
Thread Specification 3	60 Deg Seat Swivel Connection	Thread Type 3	Male BSPP With 60 Degree Seat
Thread Type 1	Female BSPP Swivel	Thread Size 1	3/8-19
Hex Size 2	22 MM	Thread Drill 2	7.1 MM
Plating	CR3	Thread Drill 1	7.1 MM
