*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

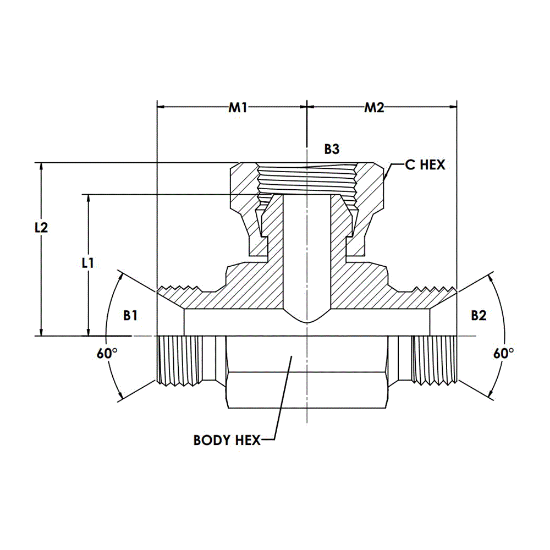

9342-06-06-06-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9342-06-06-06-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Style	Tee Adapter	Series	9342-FG
Connection Type	MBSPP-MBSPP-FBSPPS	Thread Size 2	3/8-19
Type	Tee	Weight	0.163 LB
Thread Specification 4	ISO 1179; ISO 8434-6; BS 5200	Max. Dynamic Pressure	5100 psi
Hex Size 1	22 MM	Standard	Prop-65 Warning
Thread Type 2	Male BSPP with 60 Degree Seat	Thread Drill 2	7.9 MM
Thread Type 3	Female BSPP Swivel	Thread Size 1	3/8-19
Thread Drill 1	7.9 MM	Plating	CR3
Thread Specification 2	60 Deg Seat Swivel Connection	Thread Drill 3	7.1 MM
Thread Type 1	Male BSPP With 60 Degree Seat	Thread Size 3	3/8-19
Thread Specification 3	60 Deg Seat Swivel Connection	Thread Specification 1	60 DEG Seat Swivel Connection
Body Hex	22 MM	Raw Material Type	Steel Forging
