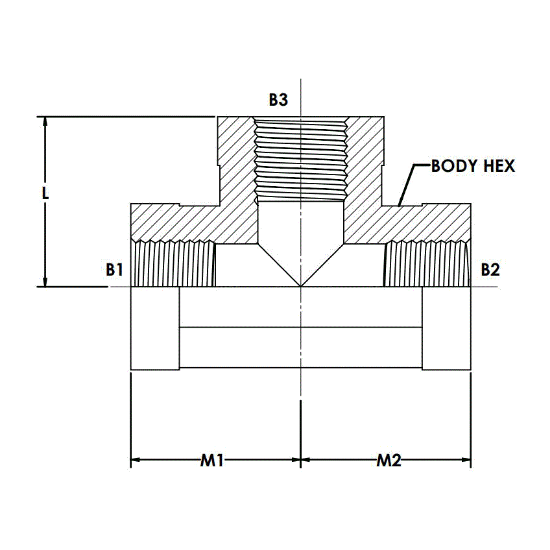

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

9345-04-04-04-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9345-04-04-04-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Standard	Prop-65 Warning
Connection Type	FBSPP-FBSPP-FBSPP	Style	Tee Adapter
Thread Size 2	1/4-19	Material	Steel
Series	9345-FG	Type	Tee
Max. Dynamic Pressure	6000 psi	Thread Specification 3	ISO 1179, ISO 8434-6, BS 5200
Thread Type 2	Female BSPP (G)	Thread Specification 2	ISO 1179, ISO 8434-6, BS 5200
Plating	CR3	Thread Type 3	Female BSPP (G)
Thread Size 3	1/4-19	Thread Size 1	1/4-19
Thread Specification 1	ISO 1179, ISO 8434-6, BS 5200	Raw Material Type	Steel Forging
Thread Type 1	Female BSPP (G)	Body Hex	19.05 MM
