94223-12

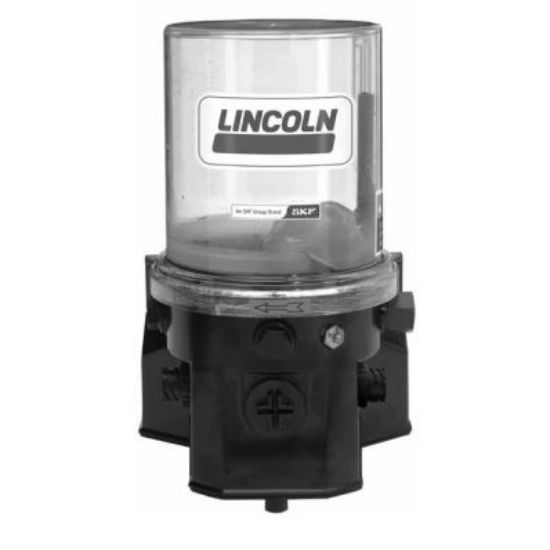

Lincoln 94223-12 | Electric Grease Pump | 5000 PSI Max Operating Pressure | 2, 4, 8 or 15 Liter Reservoir | 1/8 Inch NPT (F) Outlet Connection

Manufacturer: Lincoln

Availability:	Backordered Estimated Lead Time: 15 days
Partner Available:	Backordered

SKU 94223-12

Products specifications

Attribute name	Attribute value
UOM	EA	Interval Between Lube Cycles	Min. 4 Min / Max. 15 Hrs
Outlet Connection	1/8 Inch NPT (F)	Enclosure Rating	IP6K9K
Lubrication Type	Grease	Reservoir Capacity	2, 4, 8 or 15 Liter
Pressure Relief Valve	4000 PSI, +/- 250 PSI	Input Cycle Rate	12 VDC @ 3.5 Amps, 24 VDC @ 2 Amps, 94-265 VAC (50 to 60 Hz)
Pump Output with 0 Spacers	0.171 cu. in./min.	Pump Type	Electric Grease Pump
Maximum Operating Pressure	5000 PSI
