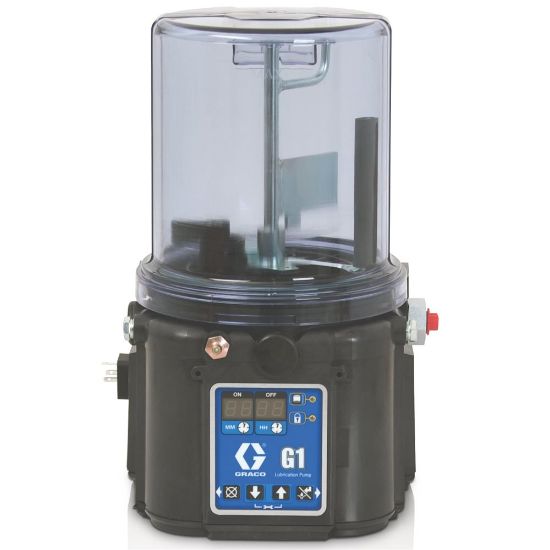

94G033

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 94G033

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	13.3 lb
Maximum Working Pressure	5100 psi	Series	Plus
Overall Height	13.25 Inch	Number of Pump Elements	1
IP Rating	IP69K	Overall Depth	9 Inch
Model	G1	Power Connection Type	DIN
Maximum Run Time	30 min	Minimum cST Grade	40 cST
Maximum Voltage	32 VDC	Voltage	24 VDC
Control Options	Plus	Fluid Outlet Size	0.25 Inch
Reservoir Size	0.528 gal	Minimum Voltage	18 VDC
Fluid Outlet Thread Gender	Female	Overall Width	8 Inch
Fluid Outlet Thread Type	NPSF
