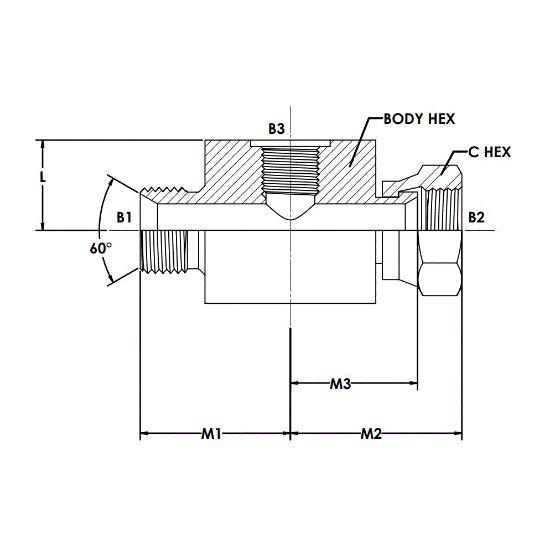

9564-04-04-02

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 9564-04-04-02

Products specifications

Attribute name	Attribute value
UOM	EA	Standard	Prop-65 Warning
Max. Dynamic Pressure	5100 psi	Weight	0.244 LB
Thread Size 2	1/4-19	Series	9564-FG
Connection Type	MBSPP-FBSPPS-FBSPP	Style	Tee Adapter
Material	Steel	Type	Tee
Plating	CR3	Thread Specification 3	ISO 1179, ISO 8434-6, BS 5200
Thread Type 3	Female BSPP (G)	Thread Specification 2	60 Deg Seat Swivel Connection
Raw Material Type	Straight Steel	Thread Size 1	1/4-19
Thread Type 1	Male BSPP With 60 Degree Seat	Thread Size 3	1/8-28
Thread Specification 1	60 DEG Seat Swivel Connection	Thread Type 2	Female BSPP Swivel
