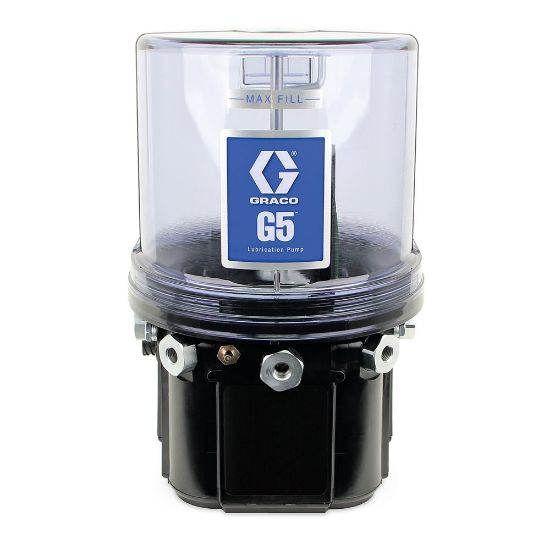

95G101

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 95G101

$2,242.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	13.3 lb
Alarm Relay Inductive Maximum Operating Current	1.5 A	Alarm Relay Resistive Maximum Switching Capacity	50 VA;60 W
Alarm Relay Resistive Maximum Operating Current	3 A	Maximum Working Pressure	4250 psi
Number of Machine Count Sensor Inputs	1	Alarm Relay Inductive Maximum Switching Capacity	25 VA;30 W
Number of Pressure and Cycle Sensor Inputs	3	Series	Standard
Minimum Operating Temperature	-40 deg F	Maximum Fill Inlet Pressure	5000 psi
Minimum Voltage	18 VDC	Fluid Inlet Thread Type	NPT
Alarm Relay Inductive Maximum Operating Voltage	220 VDC	Fluid Outlet Thread Gender	Female
Fluid Outlet Thread Type	NPSF	Voltage	24 VDC
Fluid Inlet Thread Gender	Female	Maximum NLGI Grade	#2
IP Rating	IP69K	Overall Height	14.5 Inch
Power Connection Type	5 Wire CPC	Pump Output with 0 Spacers	0.16 Cubic Inch/min
Reservoir Size	1.06 gal	Fluid Outlet Size	0.25 Inch
Number of Pump Elements	5	Model	G5
Alarm Relay Inductive Minimum Permissible Load	10 A;10m VDC	Minimum cST Grade	40 cST
Maximum Fluid Output Pressure	4250 psi	Maximum Run Time	30 min
Alarm Relay Inductive Rated Load	1 A	Control Options	Standard
Alarm Relay Resistive Rated Load	2 A	Number of Outlets	5
Pump Output with 2 Spacers	0.06 Cubic Inch/min	Maximum Voltage	30 VDC
Overall Width	9.25 Inch	Overall Depth	10 Inch
Pump Output with 1 Spacer	0.1 Cubic Inch/min	Maximum Operating Temperature	185 deg F
