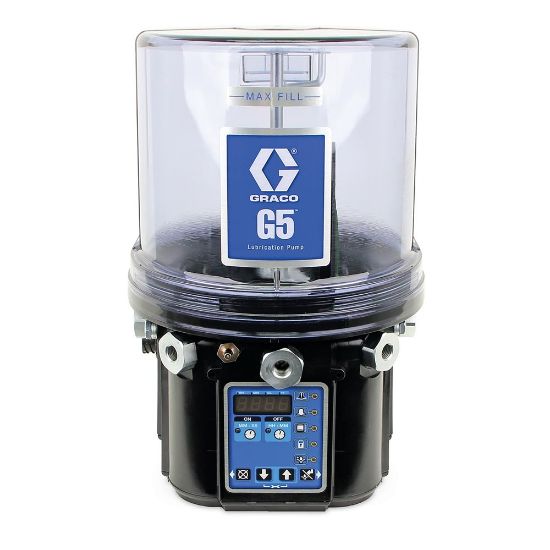

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

95G104

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 95G104

$2,679.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Alarm Relay Inductive Maximum Switching Capacity	25 VA;30 W
Low Level Contact Rating	10 W	Series	Pro
Number of Pressure and Cycle Sensor Inputs	3	Alarm Relay Inductive Maximum Operating Current	1.5 A
Input Impedance	1.1	Alarm Relay Resistive Maximum Switching Capacity	50 VA;60 W
Number of Machine Count Sensor Inputs	1	Weight	13.3 lb
Input Required Switch Type	Normally Open	Maximum Working Pressure	4250 psi
Alarm Relay Resistive Maximum Operating Current	3 A	Input Response Time	60 ms
Input Cycle Rate	8 Hz	Voltage	24 VDC
Alarm Relay Inductive Maximum Operating Voltage	220 VDC	Number of Outlets	5
Fluid Outlet Thread Type	NPSF	Fluid Inlet Thread Type	NPT
Maximum Operating Temperature	185 deg F	Maximum Voltage	30 VDC
Alarm Relay Resistive Rated Load	2 A	Low Level Switching Current	0.5 A
Minimum Voltage	18 VDC	Input Maximum Residual Voltage	4 V
Fluid Outlet Size	0.25 Inch	Maximum Fill Inlet Pressure	5000 psi
Fluid Outlet Thread Gender	Female	Control Options	Pro
Minimum Operating Temperature	-40 deg F	Alarm Relay Inductive Rated Load	1 A
Input Maximum Off Current	1.5 mA	Maximum Fluid Output Pressure	4250 psi
Overall Height	14.5 Inch	Maximum Run Time	30 min
Low Level Carry Current	1.2 A	Reservoir Size	1.06 gal
Maximum NLGI Grade	#2	Pump Output with 0 Spacers	0.16 Cubic Inch/min
Number of Pump Elements	5	IP Rating	IP69K
Power Connection Type	5 Wire CPC	Fluid Inlet Thread Gender	Female
Pump Output with 1 Spacer	0.1 Cubic Inch/min	Low Level Switch Rating	200 VDC
Overall Width	9.25 Inch	Pump Output with 2 Spacers	0.06 Cubic Inch/min
Overall Depth	10 Inch	Input Load Current	22 mA @ 24 VDC
Alarm Relay Inductive Minimum Permissible Load	10 A;10m VDC	Minimum cST Grade	40 cST
Model	G5
