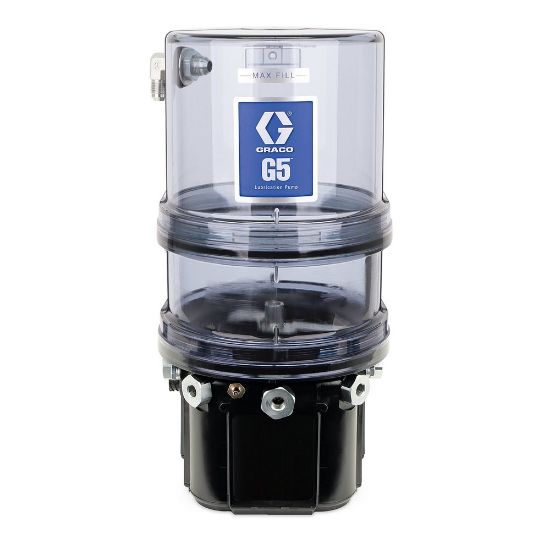

95G112

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 95G112

$2,479.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	14.6 lb
Alarm Relay Inductive Maximum Operating Current	1.5 A	Alarm Relay Resistive Maximum Switching Capacity	50 VA;60 W
Maximum Working Pressure	4250 psi	Number of Machine Count Sensor Inputs	1
Alarm Relay Resistive Maximum Operating Current	3 A	Alarm Relay Inductive Maximum Switching Capacity	25 VA;30 W
Number of Pressure and Cycle Sensor Inputs	3	Series	Standard
Maximum Fluid Output Pressure	4250 psi	Fluid Inlet Thread Gender	Female
Maximum NLGI Grade	#2	Pump Output with 0 Spacers	0.16 Cubic Inch/min
Power Connection Type	CPC	Fluid Outlet Size	0.25 Inch
IP Rating	IP69K	Number of Pump Elements	5
Model	G5	Reservoir Size	2.11 gal
Overall Depth	10 Inch	Pump Output with 1 Spacer	0.1 Cubic Inch/min
Alarm Relay Inductive Minimum Permissible Load	10 A;10m VDC	Minimum cST Grade	40 cST
Maximum Run Time	30 min	Control Options	Standard
Alarm Relay Inductive Rated Load	1 A	Alarm Relay Resistive Rated Load	2 A
Number of Outlets	5	Overall Height	18.5 Inch
Pump Output with 2 Spacers	0.06 Cubic Inch/min	Maximum Voltage	30 VDC
Overall Width	9.25 Inch	Maximum Operating Temperature	185 deg F
Minimum Operating Temperature	-40 deg F	Maximum Fill Inlet Pressure	5000 psi
Minimum Voltage	18 VDC	Fluid Inlet Thread Type	NPT
Fluid Outlet Thread Gender	Female	Fluid Outlet Thread Type	NPSF
Alarm Relay Inductive Maximum Operating Voltage	220 VDC	Voltage	24 VDC
