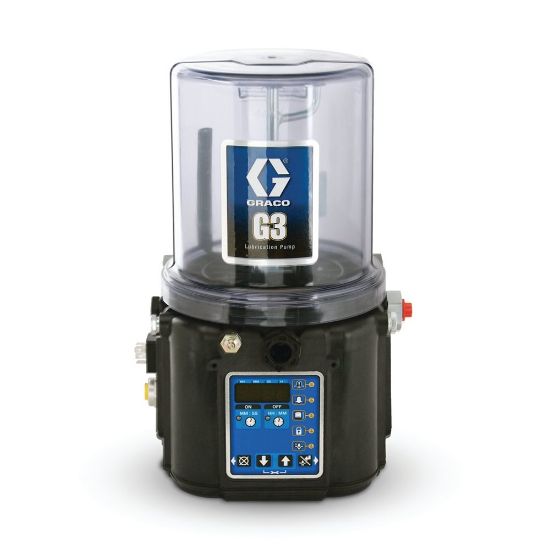

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

96G194

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 96G194

$2,042.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	13.3 lb
Series	Pro	Maximum Working Pressure	5100 psi
Number of Machine Count Sensor Inputs	1	Number of Pressure and Cycle Sensor Inputs	3
Alarm Relay Inductive Maximum Operating Current	1.5 A	Alarm Relay Resistive Maximum Operating Current	3 A
Alarm Relay Inductive Maximum Switching Capacity	25 VA;30 W	Alarm Relay Resistive Maximum Switching Capacity	50 VA;60 W
Input Impedance	1.1	Input Response Time	60 ms
Low Level Contact Rating	10 W	Input Required Switch Type	Normally Open
Alarm Relay Resistive Minimum Permissible Load	10 µA;10m VDC	Maximum NLGI Grade	#2
Reservoir Size	2.11 gal	Voltage	24 VDC
IP Rating	IP69K	Overall Width	9.25 Inch
Control Options	Pro	Minimum Voltage	18 VDC
Maximum Run Time	30 min	Fluid Outlet Size	0.25 Inch
Fluid Outlet Thread Type	NPSF	Fluid Outlet Thread Gender	Female
Maximum Fill Inlet Pressure	5000 psi	Alarm Relay Inductive Rated Load	1 A
Alarm Relay Resistive Rated Load	2 A	Alarm Relay Inductive Minimum Permissible Load	10 A;10m VDC
Alarm Relay Inductive Maximum Operating Voltage	220 VDC	Power Connection Type	5 Wire CPC
Model	G3	Maximum Voltage	32 VDC
Overall Height	18.5 Inch	Overall Depth	10 Inch
Input Cycle Rate	8 Hz	Input Load Current	22 mA @ 24 VDC
Low Level Carry Current	1.2 A	Low Level Switch Rating	200 VDC
Input Maximum Off Current	1.5 mA	Low Level Switching Current	0.5 A
Input Maximum Residual Voltage	4 V	Number of Pump Elements	Up to 3
Pump Output with 1 Spacer	0.18 Cubic Inch/min	Pump Output with 0 Spacers	0.25 Cubic Inch/min
Pump Output with 2 Spacers	0.12 Cubic Inch/min	Vent Valve Maximum Operating Power	48 W
Vent Valve Maximum Operating Current	2 A
