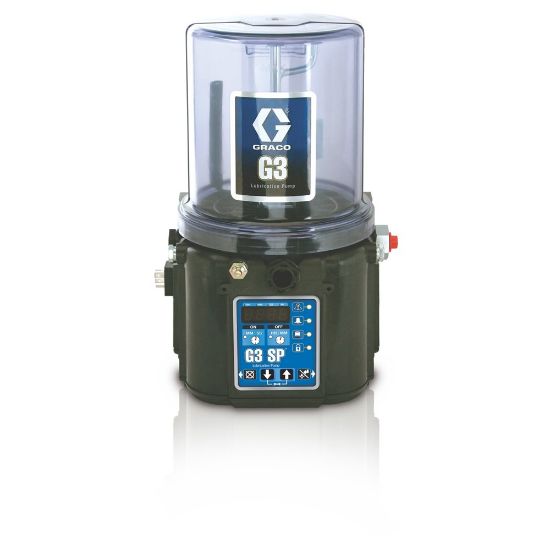

96G222

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 96G222

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	13.3 lb
Series	SP	Maximum Working Pressure	5100 psi
Number of Machine Count Sensor Inputs	1	Number of Pressure and Cycle Sensor Inputs	3
Alarm Relay Inductive Maximum Operating Current	1.5 A	Alarm Relay Resistive Maximum Operating Current	3 A
Alarm Relay Inductive Maximum Switching Capacity	25 VA;30 W	Alarm Relay Resistive Maximum Switching Capacity	50 VA;60 W
Input Impedance	1.1	Input Response Time	60 ms
Low Level Contact Rating	10 W	Input Required Switch Type	Normally Open
Alarm Relay Resistive Minimum Permissible Load	10 µA;10m VDC	Pump Output with 2 Spacers	0.12 Cubic Inch/min
Alarm Relay Inductive Minimum Permissible Load	10 A;10m VDC	Overall Height	14.5 Inch
Input Load Current	11 mA @ 12 VDC	Maximum Run Time	30 min
Maximum Voltage	16 VDC	Low Level Carry Current	1.2 A
Alarm Relay Inductive Rated Load	1 A	Low Level Switching Current	0.5 A
Alarm Relay Resistive Rated Load	2 A	Input Maximum Off Current	1 mA
Low Level Switch Rating	200 VDC	Number of Sensor Inputs	1
Overall Width	9.25 Inch	Overall Depth	10 Inch
Vent Valve Maximum Operating Current	2 A	Number of Pump Elements	Up to 3
Fluid Outlet Thread Gender	Female	Input Cycle Rate	8 Hz
Control Options	Series Progressive	Voltage	12 VDC
Maximum Fill Inlet Pressure	5000 psi	Alarm Relay Inductive Maximum Operating Voltage	220 VDC
Fluid Outlet Thread Type	NPSF	Pump Output with 0 Spacers	0.25 Cubic Inch/min
IP Rating	IP69K	Reservoir Size	1.06 gal
Vent Valve Maximum Operating Power	48 W	Maximum NLGI Grade	#2
Power Connection Type	CPC	Input Maximum Residual Voltage	2 V
Pump Output with 1 Spacer	0.18 Cubic Inch/min	Fluid Outlet Size	0.25 Inch
Minimum Voltage	9 VDC	Model	G3
