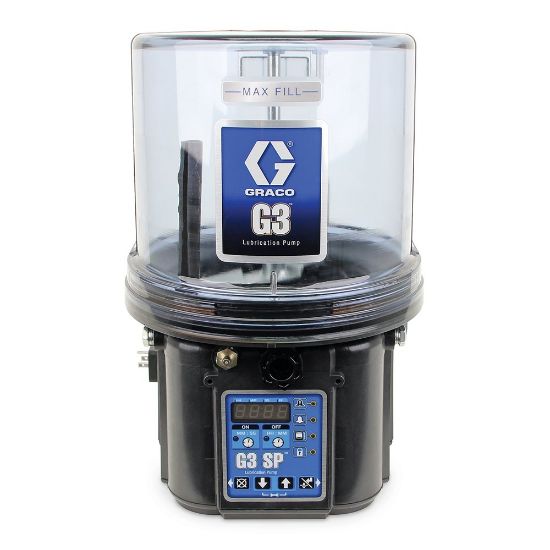

96G228

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 96G228

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	13.3 lb
Series	SP	Maximum Working Pressure	5100 psi
Number of Machine Count Sensor Inputs	1	Number of Pressure and Cycle Sensor Inputs	3
Alarm Relay Inductive Maximum Operating Current	1.5 A	Alarm Relay Resistive Maximum Operating Current	3 A
Alarm Relay Inductive Maximum Switching Capacity	25 VA;30 W	Alarm Relay Resistive Maximum Switching Capacity	50 VA;60 W
Input Impedance	1.1	Input Response Time	60 ms
Low Level Contact Rating	10 W	Input Required Switch Type	Normally Open
Alarm Relay Resistive Minimum Permissible Load	10 µA;10m VDC	Vent Valve Output Voltage	24 VDC
Alarm Relay Resistive Maximum Operating Voltage	250 VAC	Number of Pump Elements	Up to 3
Fluid Outlet Thread Gender	Female	Model	G3
Control Options	Series Progressive	Maximum Fill Inlet Pressure	5000 psi
Alarm Relay Resistive Rated Load	0.4 A	Voltage	90-240 VAC
Input Cycle Rate	8 Hz	Maximum Voltage	264 VAC
Fluid Outlet Thread Type	NPSF	Overall Height	14.5 Inch
Reservoir Size	1.06 gal	Input Voltage	24 VDC
Vent Valve Maximum Operating Power	48 W	Maximum NLGI Grade	#2
IP Rating	IP69K	Fluid Outlet Size	0.25 Inch
Input Maximum Residual Voltage	4 V	Pump Output with 1 Spacer	0.18 Cubic Inch/min
Pump Output with 2 Spacers	0.12 Cubic Inch/min	Alarm Relay Inductive Rated Load	0.2 A
Alarm Relay Inductive Minimum Permissible Load	10 A;10m VDC	Minimum Voltage	88 VAC
Maximum Run Time	30 min	Input Maximum Off Current	1.5 mA
Low Level Carry Current	1.2 A	Pump Output with 0 Spacers	0.25 Cubic Inch/min
Low Level Switching Current	0.5 A	Overall Depth	10 Inch
Low Level Switch Rating	200 VDC	Vent Valve Maximum Operating Current	2 A
Overall Width	9.25 Inch	Alarm Relay Inductive Maximum Operating Voltage	250 VAC
Number of Sensor Inputs	1	Input Load Current	22 mA @ 24 VDC
Power Connection Type	DIN
