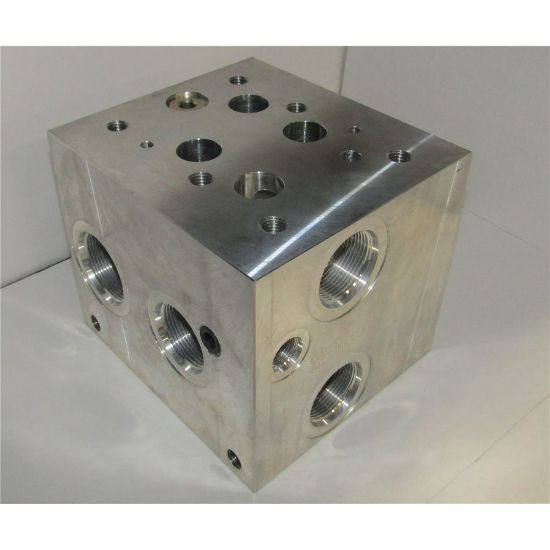

AD08HP015S/C

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU AD08HP015S/C

$502.20/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	-24 T, -20 P, A & B
Dimensions	7X6X6.25	Valve Spacing	5.25 Inch
Cavity	Common Cavity: With solenoid clearance. C-16-2 (P in nose)	Circuit	Parallel Circuit High Flow
Pattern	D08 / ISO 4401-08-07, NFPA T3.5.1-D08	Port Type	SAE - ISO 11926
Stations	1
