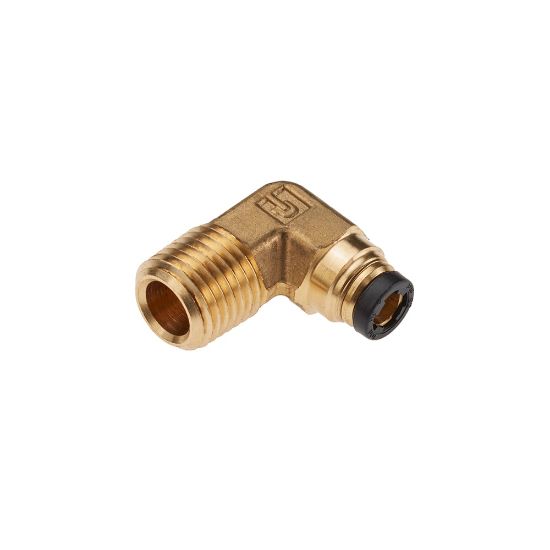

169PTCNS-5/32-4 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

Availability:	Backordered Estimated Lead Time: 73 days
Partner Available:	48 in stock

SKU 169PTCNS-5/32-4

$22.84/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Connection 2 Type	Male NPT	Connection 2 Size	1/4"
Connection 1 Type	Push-to-Connect	Connection 1 Size	5/32"
Thread Sealant Material	n/a	Configuration	Tube to Pipe
Shape	Elbow 90° - Rigid	Minimum Operating Temperature	-40 °F
Body Material	Brass	Maximum Operating Temperature	93.3 °C
