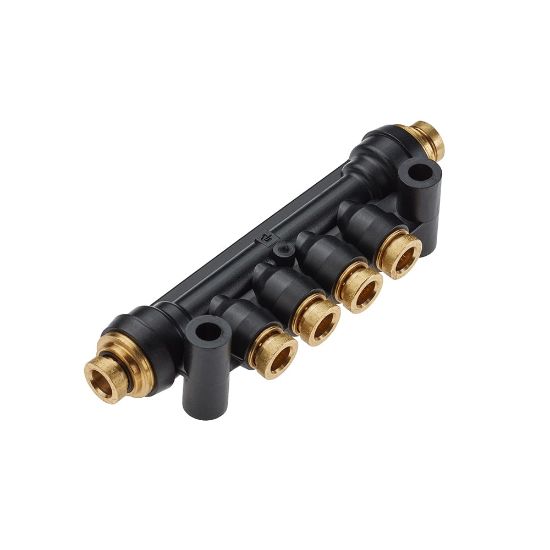

Picture of Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR - 24M-4-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR - 24M-4-4

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.
Availability:
Backordered
SKU 24M-4-4
$73.48
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 Size1/4"
Connection 2 Size1/4"ConfigurationTube to Tube
Connection 1 TypePush-to-ConnectConnection 2 TypePush-to-Connect
Thread Sealant Materialn/aBody MaterialComposite
Product StyleManifoldDivisionFluid System Connectors Division
Connection TypeNPTFMaximum Operating Temperature110 °C
Maximum Operating Pressure250 psiDimensional Weight1.3797 lb
Minimum Operating Temperature-50 °FBody MaterialComposite
O-Ring MaterialBuna NSpecifications MetDOT FMVSS 571.106, SAE J1131, SAE J2494-3
ApplicationAir BrakesTube MaterialJ844 Type A & B Nylon Tubing
Collet MaterialBrass
