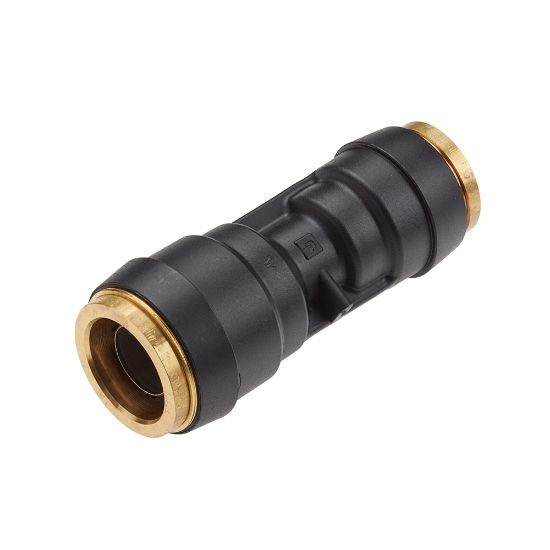

32PTC-4 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Name: 32PTC-4 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR
SKU: 32PTC-4
Price: 10.22 USD
Availability: InStock

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

Availability:

30 in stock

Olivette, MO	11
Springfield, MO	4
Olivette, MO	4
WICHITA, KS	3
COLUMBIA, MO	2
Kansas City, KS	2
Peoria, IL	2
Decatur, IL	2

Partner Available:

169 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 32PTC-4

$10.22/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	1/4"
Connection 2 Size	1/4"	Configuration	Tube to Tube
Connection 1 Type	Push-to-Connect	Connection 2 Type	Push-to-Connect
Thread Sealant Material	n/a	Shape	Union
Body Material	Composite	Connection Type	NPTF
Maximum Operating Pressure	17 bar	Dimensional Weight	0.2759 lb
Minimum Operating Temperature	-50 °F	Body Material	Composite
O-Ring Material	Buna N	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3
Collet Material	Brass	Maximum Operating Temperature	230 °F
Tube Material	Stainless Steel
