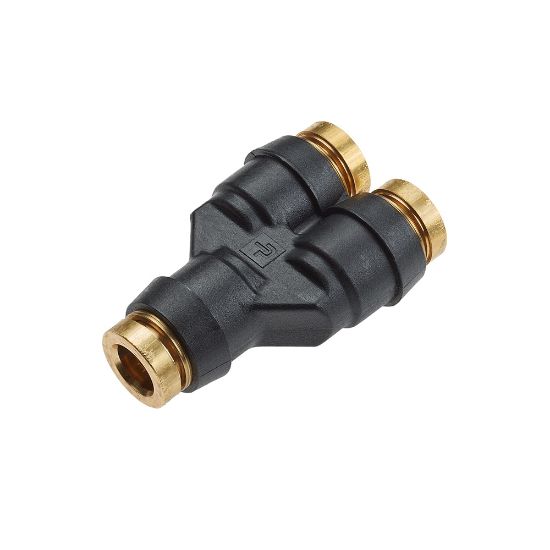

Picture of Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR - 362PTC-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR - 362PTC-4

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.
Availability:
9 in stock
Decatur, IL5
Kansas City, KS4
SKU 362PTC-4
$32.86
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 Size1/4"
Connection 2 Size1/4"ConfigurationTube to Tube
Connection 1 TypePush-to-ConnectConnection 3 Size1/4"
Connection 2 TypePush-to-ConnectConnection 3 TypePush-to-Connect
Thread Sealant Materialn/aBody MaterialComposite
ShapeWyeDivisionFluid System Connectors Division
Connection TypeNPTFMaximum Operating Pressure17 bar
Maximum Operating Temperature110 °CDimensional Weight0.2759 lb
Body MaterialCompositeO-Ring MaterialBuna N
Specifications MetDOT FMVSS 571.106, SAE J1131, SAE J2494-3ApplicationAir Brakes
Collet MaterialBrassMinimum Operating Temperature-45.5 °C
Tube MaterialStainless Steel
