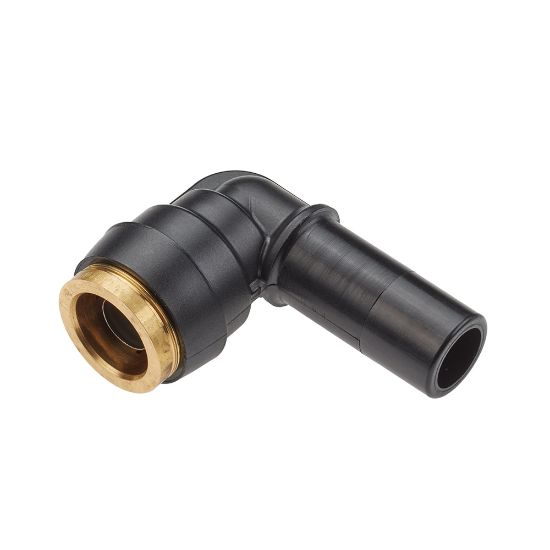

Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR - 369PTCSP-4-6

Name: Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR - 369PTCSP-4-6
SKU: 369PTCSP-4-6

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

Availability:

Backordered

SKU 369PTCSP-4-6

$8.77

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	1/4"
Connection 2 Size	3/8"	Connection 1 Type	Push-to-Connect
Thread Sealant Material	n/a	Body Material	Composite
Connection 2 Type	Plug-in Stem	Shape	Elbow 90° - Plug-in
Configuration	Tube to Plug-In Stem	Division	Fluid System Connectors Division
Minimum Operating Temperature	-40 °F	Connection Type	NPTF
Maximum Operating Pressure	250 psi	Maximum Operating Temperature	93 °C
Body Material	Composite	O-Ring Material	Buna N
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3	Application	Air Brakes
Collet Material	Brass	Tube Material	Stainless Steel
