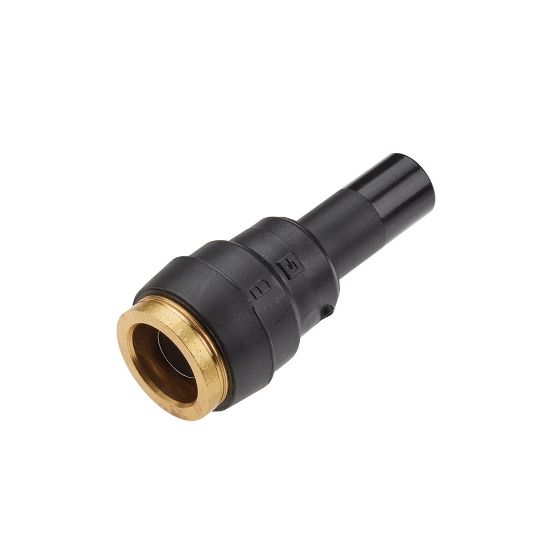

Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR - 37PTCSP-6-4

Name: Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR - 37PTCSP-6-4
SKU: 37PTCSP-6-4

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

Availability:

Backordered

SKU 37PTCSP-6-4

$10.72

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	3/8"
Connection 2 Size	1/4"	Connection 1 Type	Push-to-Connect
Thread Sealant Material	n/a	Body Material	Composite
Connection 2 Type	Plug-in Stem	Configuration	Tube to Plug-In Stem
Product Style	Plug-In Adapter	Division	Fluid System Connectors Division
Minimum Operating Temperature	-40 °C	Connection Type	NPTF
Maximum Operating Temperature	110 °C	Maximum Operating Pressure	250 psi
Body Material	Composite	O-Ring Material	Buna N
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3	Application	Air Brakes
Tube Material	J844 Type A & B Nylon Tubing	Collet Material	Brass
