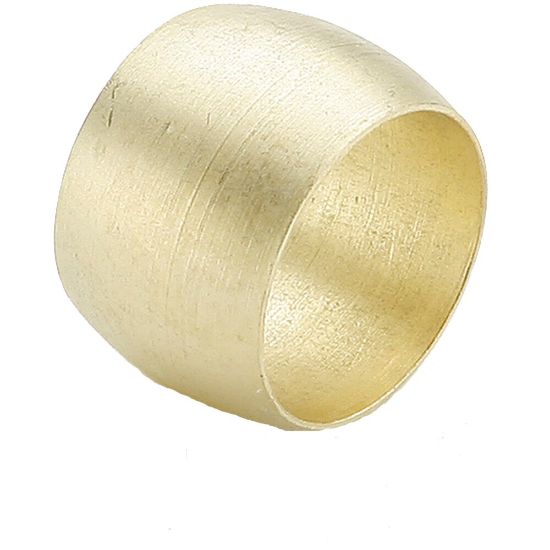

60AB-4 - Air Brake D.O.T. compression style fittings, AB

Name: 60AB-4 - Air Brake D.O.T. compression style fittings, AB
SKU: 60AB-4
Price: 0.62 USD
Availability: InStock

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Availability:

86 in stock

TOPEKA, KS

Partner Available:

330 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 60AB-4

$0.62/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Style	na
Shape	Sleeve	Connection 2 Thread Size (inch)	na
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Style	Tube
Body Material	Brass	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-65 °F	Nut Material	Brass
Sleeve Material	Brass	Maximum Operating Pressure	400 psi
Tube Material	Annealed Copper	Specifications Met	DOT FMVSS 571.106, SAE J246
Thread Sealant Material	Vibra-Seal 516
