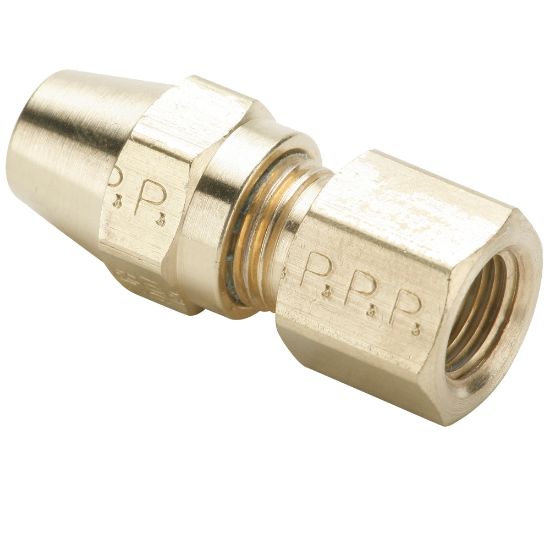

Air Brake D.O.T. compression style fittings, AB - 66AB-6-6

Name: Air Brake D.O.T. compression style fittings, AB - 66AB-6-6
SKU: 66AB-6-6
Price: 17.03 USD
Availability: InStock

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Availability:

3 in stock

Olivette, MO

SKU 66AB-6-6

$17.03

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube O.D. (inch)	na
Shape	Connector	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	3/8	Connection 2 Thread Size (inch)	3/8
Connection 2 Style	Female Pipe	Style	Tube to Female Pipe
Division	Fluid System Connectors Division	Body Material	Brass
Maximum Operating Pressure	27 bar	Application	Air Brake
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-53 °C
Nut Material	Brass	Sleeve Material	Brass
Tube Material	Annealed Copper	Specifications Met	DOT FMVSS 571.106, SAE J246
Thread Sealant Material	Vibra-Seal 516
