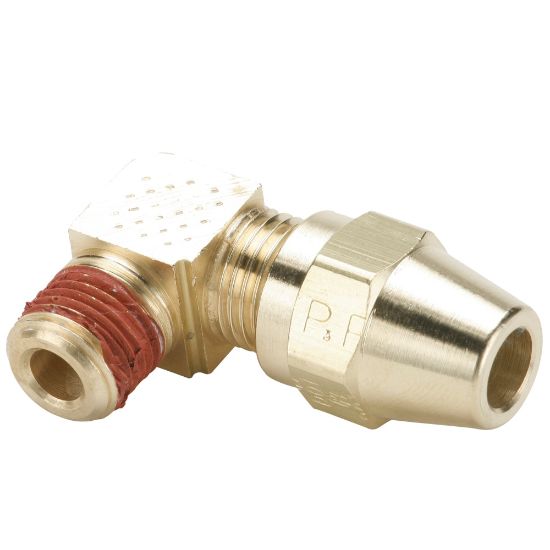

VS269AB-4-4 - Air Brake D.O.T. compression style fittings, AB

Name: VS269AB-4-4 - Air Brake D.O.T. compression style fittings, AB
SKU: VS269AB-4-4
Price: 10.09 USD
Availability: InStock

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Availability:

10 in stock

Olivette, MO

Partner Available:

72 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU VS269AB-4-4

$10.09/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube O.D. (inch)	1/4
Shape	90° Elbow	Connection 2 Tube O.D. (inch)	na
Connection 2 Thread Size (inch)	1/4	Style	Tube to Pipe
Connection 1 Style	Compression	Connection 2 Style	Male Pipe
Thread Sealant Material	Vibra-Seal 516	Sleeve Material	Brass
Maximum Operating Pressure	27 bar	Body Material	Brass
Dimensional Weight	0.27594424460431655 lb	Tube Material	Annealed Copper
Maximum Operating Temperature	250 °F	Nut Material	Brass
Specifications Met	DOT FMVSS 571.106, SAE J246	Minimum Operating Temperature	-53 °C
