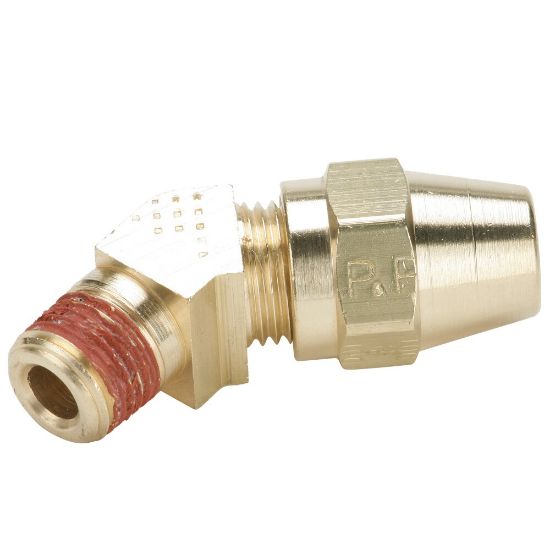

VS279AB-10-6 - Air Brake D.O.T. compression style fittings, AB

Name: VS279AB-10-6 - Air Brake D.O.T. compression style fittings, AB
SKU: VS279AB-10-6
Price: 45.93 USD
Availability: InStock

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Availability:

3 in stock

Olivette, MO

Partner Available:

12 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU VS279AB-10-6

$45.93/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube O.D. (inch)	5/8
Connection 2 Tube O.D. (inch)	na	Connection 2 Thread Size (inch)	3/8
Connection 1 Style	Compression	Shape	45° Elbow
Connection 2 Style	Male Pipe	Style	Tube to Pipe
Body Material	Brass	Specifications Met	DOT FMVSS 571.106, SAE J246
Sleeve Material	Brass	Maximum Operating Pressure	400 psi
Tube Material	Annealed Copper	Minimum Operating Temperature	-65 °F
Maximum Operating Temperature	121 °C	Thread Sealant Material	Vibra-Seal 516
Nut Material	Brass
