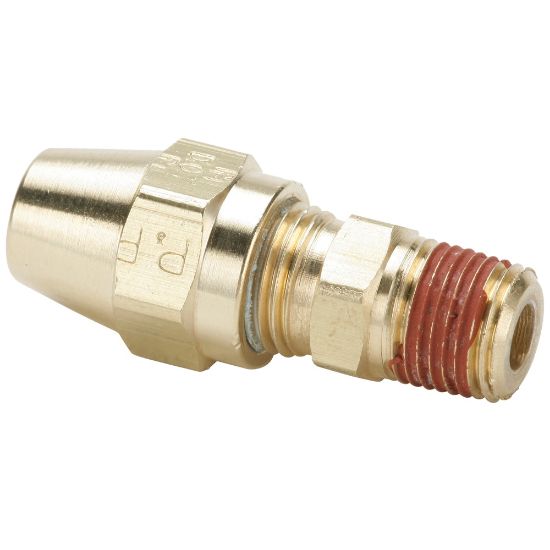

Air Brake D.O.T. compression style fittings, AB - VS68AB-4-2

Name: Air Brake D.O.T. compression style fittings, AB - VS68AB-4-2
SKU: VS68AB-4-2

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Availability:

Backordered

SKU VS68AB-4-2

$5.81

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Style	Compression
Connection 2 Style	Male Pipe	Style	Tube to Pipe
Connection 1 Tube O.D. (inch)	1/4	Shape	Connector
Connection 2 Tube O.D. (inch)	na	Connection 2 Thread Size (inch)	1/8
Nut Material	Brass	Application	Air Brake
Specifications Met	DOT FMVSS 571.106, SAE J246	Division	Fluid System Connectors Division
Thread Sealant Material	Vibra-Seal 516	Body Material	Brass
Minimum Operating Temperature	-53 °C	Maximum Operating Pressure	400 psi
Sleeve Material	Brass	Maximum Operating Temperature	250 °F
Tube Material	Annealed Copper
