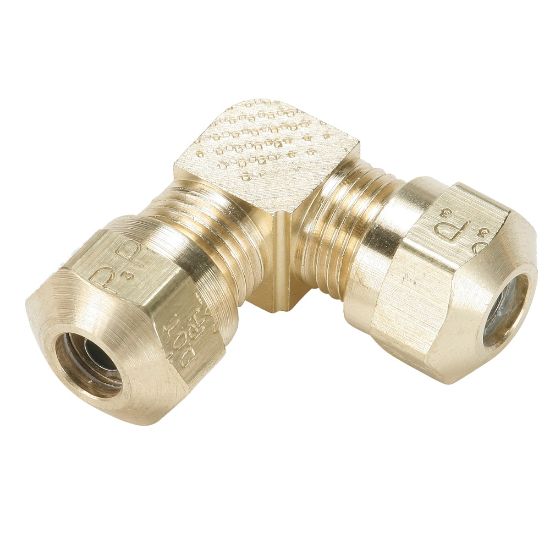

265NTA-10 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: 265NTA-10 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: 265NTA-10
Price: 61.37 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:

7 in stock

Kansas City, KS

Partner Available:

22 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 265NTA-10

$61.37/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Shape	90° Elbow
Connection 2 Thread Size (inch)	na	Connection 1 Tube O.D. (inch)	5/8
Connection 2 Tube O.D. (inch)	5/8	Connection 1 Style	Compression
Connection 2 Style	Compression	Style	Tube to Tube
Minimum Operating Temperature	-40 °C	Body Material	Brass
Maximum Operating Pressure	150 psi	Maximum Operating Temperature	200 °F
Dimensional Weight	0.27594424460431655 lb	Nut Material	Brass
Sleeve Material	Brass	Tube Material	SAE J844 Type A & B Nylon Tubing
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Thread Sealant Material	Vibra-Seal 516
