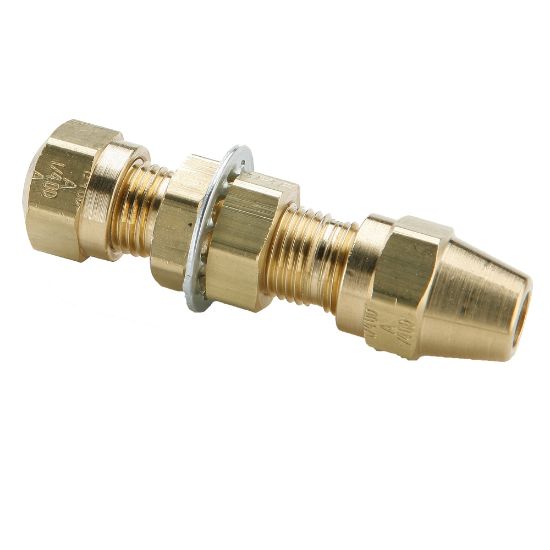

Picture of Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA - 62ANBH-6

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA - 62ANBH-6

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.
Availability:
Backordered
SKU 62ANBH-6
$36.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 3 Stylena
Connection 3 Thread Size (inch)naShapeBulkhead
Connection 2 Thread Size (inch)naConnection 2 Tube O.D. (inch)3/8
Connection 1 StyleCompressionConnection 2 StyleCompression
Connection 1 Tube O.D. (inch)3/8StyleNTA Tube to AB Tube
DivisionFluid System Connectors DivisionMinimum Operating Temperature-40 °C
Body MaterialBrassMaximum Operating Pressure150 psi
Maximum Operating Temperature93 °CNut MaterialBrass
Sleeve MaterialBrassApplicationAir Brake, Accessories
Tube MaterialStainless SteelSpecifications MetDOT FMVSS 571.106, SAE J1131, SAE J246
Thread Sealant MaterialVibra-Seal 516
