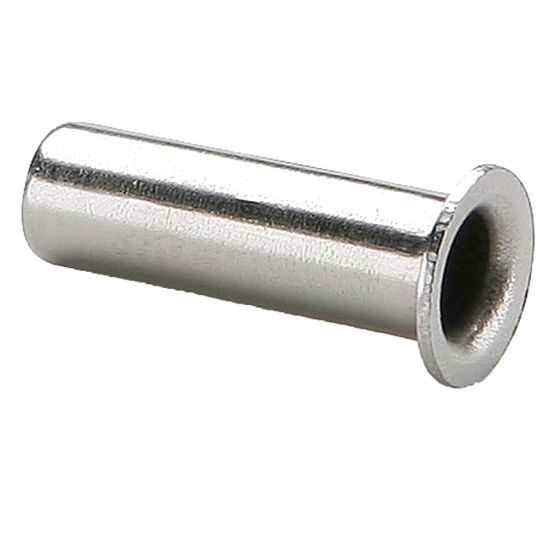

Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA - 63NTA-4

Name: Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA - 63NTA-4
SKU: 63NTA-4
Price: 0.71 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:

1005 in stock

Kansas City, KS	1,000
Decatur, IL	5

SKU 63NTA-4

$0.71

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tube support
Connection 3 Style	na	Connection 3 Thread Size (inch)	na
Connection 2 Thread Size (inch)	na	Style	Tube
Connection 1 Tube O.D. (inch)	1/4	Connection 1 Style	Insert
Connection 2 Tube O.D. (inch)	na	Connection 2 Style	na
Dimensional Weight	0.027216816546762588 lb	Minimum Operating Temperature	-40 °C
Nut Material	Brass	Tube Material	Stainless Steel
Application	Air Brake, Accessories	Maximum Operating Temperature	93 °C
Division	Fluid System Connectors Division	Body Material	Brass
Maximum Operating Pressure	150 psi	Thread Sealant Material	Vibra-Seal 516
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Sleeve Material	Brass
