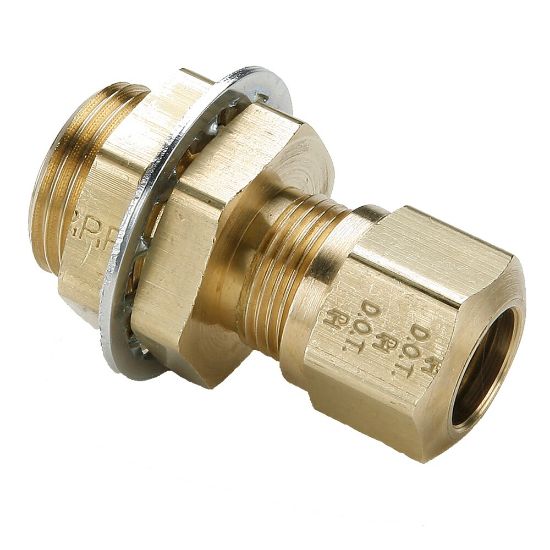

Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA - 66NBH-8-6

Name: Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA - 66NBH-8-6
SKU: 66NBH-8-6

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:

Backordered

SKU 66NBH-8-6

$23.40

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Shape	Bulkhead
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/2	Connection 2 Thread Size (inch)	3/8
Connection 2 Style	Female Pipe	Style	Tube to Female Pipe
Division	Fluid System Connectors Division	Minimum Operating Temperature	-40 °F
Body Material	Brass	Maximum Operating Pressure	10 bar
Maximum Operating Temperature	93 °C	Dimensional Weight	0.27594424460431655 lb
Nut Material	Brass	Sleeve Material	Brass
Application	Air Brake, Accessories	Tube Material	Stainless Steel
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Thread Sealant Material	Vibra-Seal 516
